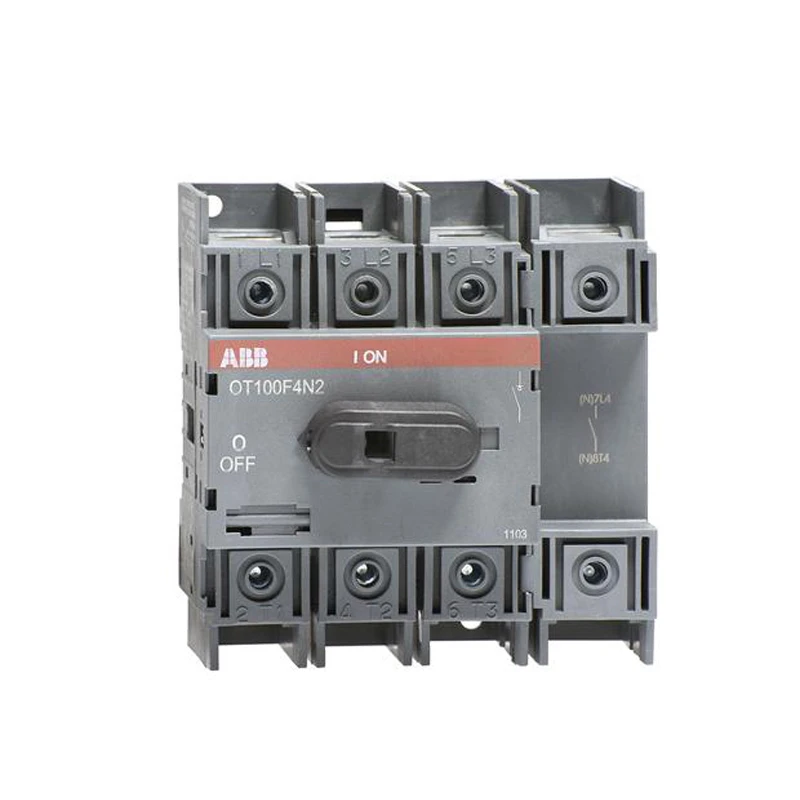

ABB Switch Disconnector Front Operated 4P Term Clamps 115A IP20
£99.02 Incl. VAT
This ABB switch disconnector features a 10 to 70mm² cable cross-section with a top-in/bottom-out position of line terminals. The switch disconnector is suitable for diverse applications, in motor control centers, in switchboards and as main switches in various equipment and machines. · · · 37kW power rating · · 4/0.36W power loss per pole · · 6N·m tightening torque · · 55 in·lb · · 750V voltage rating · · Screw terminals · · Opening/closing delay: 3.5-14ms/ 9-35ms · · Mechanical service life: 30000000 cycles · · Ambient operating temperature: -25°C to 60°C · · IP20 Degree of protection
Out of stock
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Degree of protection (IP), front side IP20 Type of control element Rotating button Device construction Built-in device fixed built-in technique Type of electrical connection of main circuit Screw connection Colour control element Black Number of auxiliary contacts as normally closed contact 0 Rated operation power at AC-3, 400 V 37 kW Number of poles 4 Conditioned rated short-circuit current Iq 3.6 kA Number of auxiliary contacts as change-over contact 0 Rated permanent current Iu 100 A Rated operation power at AC-23, 400 V 37 kW Version as maintenance-/service switch No Rated operating voltage 750 – 750 V Rated short-time withstand current lcw 2.5 kA Switching power at 400 V 37 kW Number of auxiliary contacts as normally open contact 0 Rated permanent current at AC-21, 400 V 100 A Max. rated operation voltage Ue AC 690 V Version as reversing switch No Suitable for front mounting 4-hole No Voltage release optional No Motor drive optional No Motor drive integrated No Version as main switch Yes Version as emergency stop installation No Version as safety switch No Suitable for intermediate mounting No Interlockable No Suitable for floor mounting Yes Suitable for front mounting centre No Suitable for distribution board installation Yes · Technical Data Sheet – Click to Download
