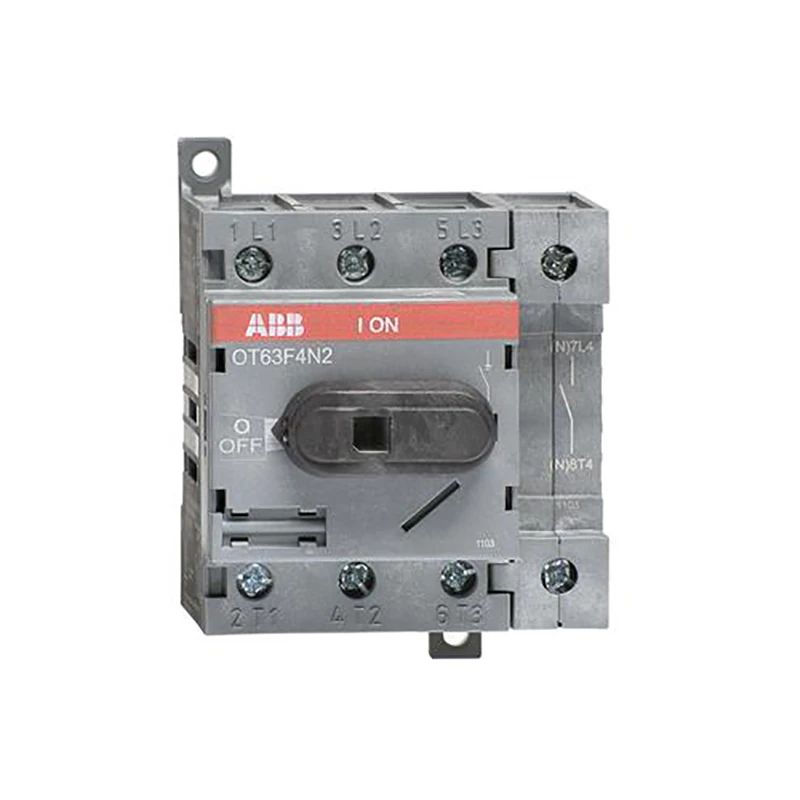

ABB Switch Disconnector Front Operated 4P Term Clamps 63A IP20
ABB Switch Disconnector Front Operated 4P Term Clamps 63A IP20
ABB Switch Disconnector Front Operated 4P Term Clamps 63A IP20 - Image 2

ABB Switch Disconnector Front Operated 4P Term Clamps 63A IP20

£55.51 Incl. VAT

This ABB switch disconnector features a 1.5 to 35mm² cable cross-section with a top-in/bottom-out position of line terminals. The switch disconnector is suitable for diverse applications, in motor control centers, in switchboards and as main switches in various equipment and machines. · · · 11kW power rating · · 2.8W power loss per pole · · 2N·m tightening torque · · 18 in·lb · · 750V voltage rating · · Screw terminals · · Shock resistance: Category 1, Class B · · Vibration resistance: Category 1, Class B · · Ambient operating temperature: -25 to 70°C · · Ambient storage temperature: -40 to 80°C

2 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: OT63F4N2 Categories: , , Brand: Part Number: 2500307211

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Degree of protection (IP), front side IP20 Type of control element Toggle Colour control element Black Device construction Built-in device fixed built-in technique Type of electrical connection of main circuit Screw connection Number of poles 4 Conditioned rated short-circuit current Iq 1.4 kA Number of auxiliary contacts as normally open contact 0 Rated short-time withstand current lcw 1 kA Rated permanent current at AC-21, 400 V 63 A Switching power at 400 V 22 kW Number of auxiliary contacts as change-over contact 0 Rated permanent current Iu 60 A Rated operation power at AC-23, 400 V 22 kW Rated operation power at AC-3, 400 V 22 kW Number of auxiliary contacts as normally closed contact 0 Max. rated operation voltage Ue AC 690 V Version as emergency stop installation No Version as safety switch No Motor drive optional No Version as reversing switch No Version as main switch Yes Version as maintenance-/service switch No Rated operating voltage 750 – 750 V Motor drive integrated No Interlockable No Voltage release optional No Suitable for front mounting 4-hole No Suitable for intermediate mounting No Suitable for floor mounting Yes Suitable for front mounting centre No Suitable for distribution board installation Yes · Technical Data Sheet – Click to Download
