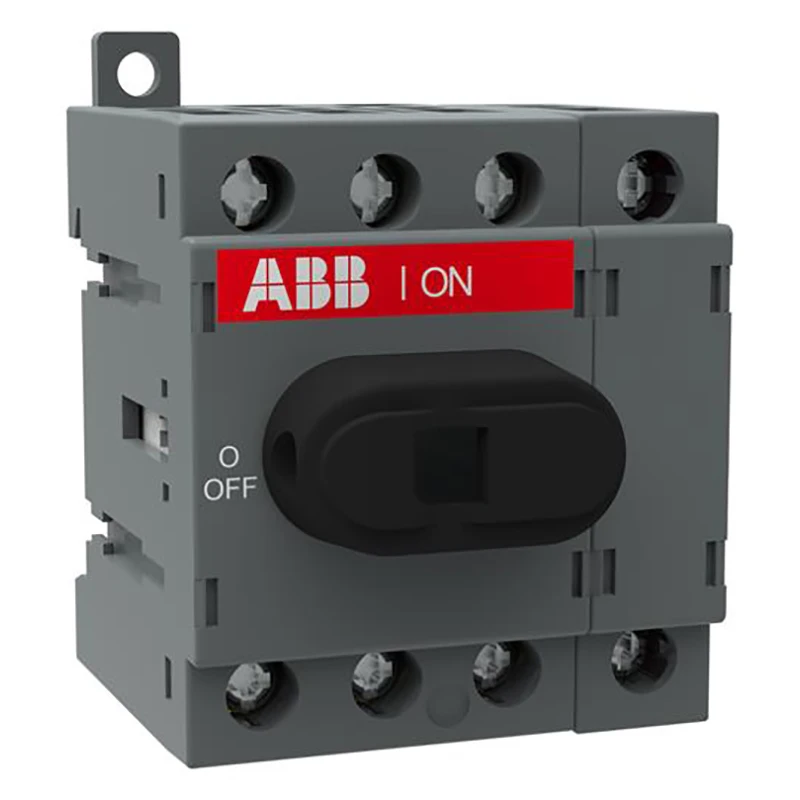

ABB Switch Disconnector Front Operated 4P Terminal Clamps 16A IP20
ABB Switch Disconnector Front Operated 4P Terminal Clamps 16A IP20
ABB Switch Disconnector Front Operated 4P Terminal Clamps 16A IP20 - Image 2
ABB Switch Disconnector Front Operated 4P Terminal Clamps 16A IP20 - Image 3

ABB Switch Disconnector Front Operated 4P Terminal Clamps 16A IP20

£29.54 Incl. VAT

This ABB switch disconnector features a 0.75 to 10mm² cable cross-section with a top-in/bottom-out position of line terminals. The switch disconnector is suitable for diverse applications, in motor control centers, in switchboards and as main switches in various equipment and machines. · · · 7.5kW power rating · · 0.3W power loss per pole · · 0.8N·m tightening torque · · 7 in·lb · · 750V voltage rating · · Screw terminals · · Vibration resistance: Category 1, Class B · · Ambient operating temperature: -25 to 70°C · · Ambient storage temperature: -40 to 80°C

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: OT16F4N2 Categories: , , Brand: Part Number: 2500307065

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Degree of protection (IP), front side IP20 Type of control element Toggle Colour control element Black Device construction Built-in device fixed built-in technique Type of electrical connection of main circuit Screw connection Number of poles 4 Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as normally closed contact 0 Rated operation power at AC-23, 400 V 7.5 kW Conditioned rated short-circuit current Iq 0.705 kA Rated permanent current Iu 20 A Switching power at 400 V 7.5 kW Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-21, 400 V 16 A Rated short-time withstand current lcw 0.5 kA Rated operation power at AC-3, 400 V 7.5 kW Number of auxiliary contacts as change-over contact 0 Version as maintenance-/service switch No Motor drive integrated No Version as main switch Yes Suitable for distribution board installation Yes Suitable for front mounting centre No Suitable for floor mounting Yes Rated operating voltage 750 – 750 V Version as safety switch No Version as emergency stop installation No Version as reversing switch No Motor drive optional No Voltage release optional No Suitable for front mounting 4-hole No Suitable for intermediate mounting No Interlockable No · Technical Data Sheet – Click to Download
