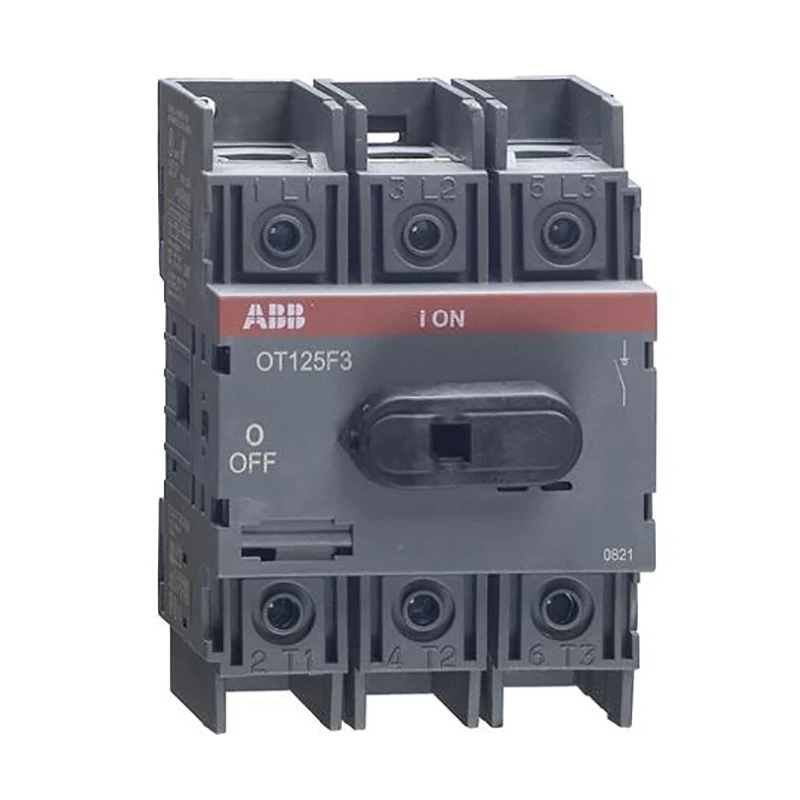

ABB Switch Disconnector Front Operated TP Term Clamps 125A IP20

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Type of control element Rotating button Colour control element Black Degree of protection (IP), front side IP20 Device construction Suitable for fixed installation Rated permanent current Iu 125 A Conditioned rated short-circuit current Iq 3.6 kA Type of electrical connection of main circuit Screw connection Number of poles 3 Rated operation power at AC-23, 400 V 45 kW Number of auxiliary contacts as change-over contact 0 Rated permanent current at AC-21, 400 V 125 A Switching power at 400 V 45 kW Max. rated operation voltage Ue AC 690 V Rated short-time withstand current lcw 2.5 kA Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 45 kW Rated operating voltage 750 V Version as maintenance-/service switch No Version as safety switch No Version as emergency stop installation No Motor drive integrated No Version as main switch Yes Version as reversing switch No Motor drive optional No Voltage release optional No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for intermediate mounting No Interlockable No Suitable for distribution board installation Yes
