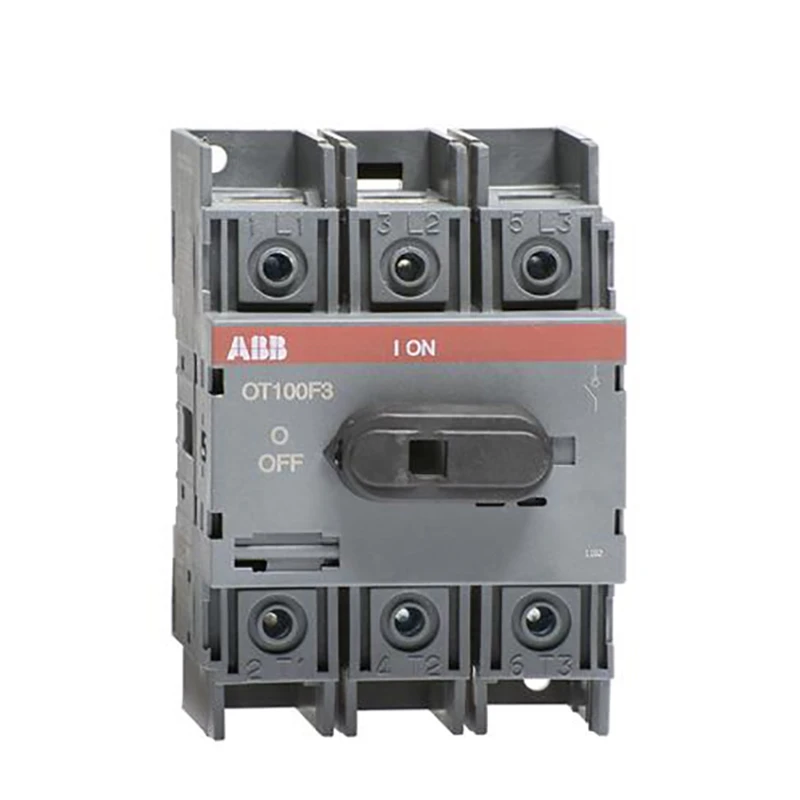

ABB Switch Disconnector Front Operated TP Terminal Clamps 115A IP20

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Type of control element Rotating button Colour control element Black Degree of protection (IP), front side IP20 Device construction Built-in device fixed built-in technique Type of electrical connection of main circuit Screw connection Number of poles 3 Rated short-time withstand current lcw 2.5 kA Conditioned rated short-circuit current Iq 3.6 kA Number of auxiliary contacts as change-over contact 0 Rated permanent current at AC-21, 400 V 100 A Switching power at 400 V 37 kW Max. rated operation voltage Ue AC 690 V Rated operation power at AC-23, 400 V 37 kW Rated permanent current Iu 100 A Rated operation power at AC-3, 400 V 37 kW Rated operating voltage 750 – 750 V Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Suitable for distribution board installation Yes Suitable for floor mounting Yes Voltage release optional No Motor drive optional No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for intermediate mounting No Interlockable No Version as emergency stop installation No Version as maintenance-/service switch No Version as safety switch No Motor drive integrated No Version as main switch Yes Version as reversing switch No · Technical Data Sheet – Click to Download
