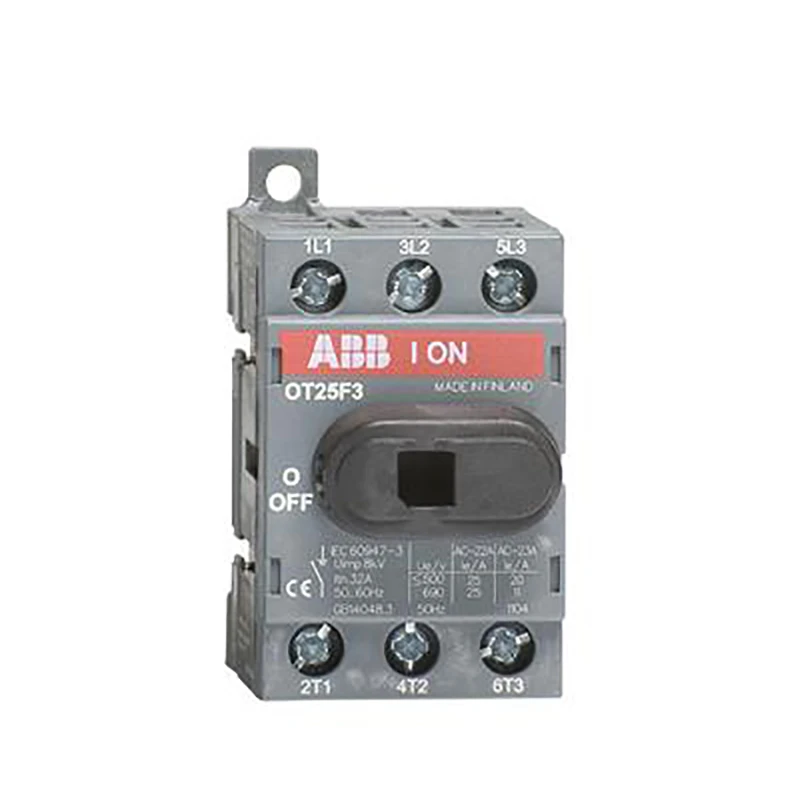

ABB Switch Disconnector Front Operated TP Term Clamps 25A IP20
ABB Switch Disconnector Front Operated TP Term Clamps 25A IP20
ABB Switch Disconnector Front Operated TP Term Clamps 25A IP20 - Image 2
ABB Switch Disconnector Front Operated TP Term Clamps 25A IP20 - Image 3

ABB Switch Disconnector Front Operated TP Term Clamps 25A IP20

£29.17 Incl. VAT

This ABB switch disconnector features a 0.75 to 10mm² cable cross-section with a top-in/bottom-out position of line terminals. The switch disconnector is suitable for diverse applications, in motor control centers, in switchboards and as main switches in various equipment and machines. · · · 9kW power rating · · 0.6W power loss per pole · · 0.8N·m tightening torque · · 7 in·lb · · 750V voltage rating · · Screw terminals

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: OT25F3 Categories: , , Product Code: 2500307106

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Colour control element Black Type of control element Toggle Degree of protection (IP), front side IP20 Device construction Suitable for fixed installation Type of electrical connection of main circuit Screw connection Rated short-time withstand current lcw 0.5 kA Number of auxiliary contacts as change-over contact 0 Rated operation power at AC-23, 400 V 9 kW Rated permanent current at AC-21, 400 V 25 A Max. rated operation voltage Ue AC 690 V Rated permanent current Iu 30 A Conditioned rated short-circuit current Iq 0.705 kA Number of auxiliary contacts as normally open contact 0 Number of poles 3 Number of auxiliary contacts as normally closed contact 0 Rated operation power at AC-3, 400 V 9 kW Switching power at 400 V 9 kW Rated operating voltage 750 – 750 V Suitable for distribution board installation Yes Interlockable No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for intermediate mounting No Version as emergency stop installation No Motor drive integrated No Version as main switch Yes Version as reversing switch No Motor drive optional No Voltage release optional No Version as maintenance-/service switch No Version as safety switch No · Technical Data Sheet – Click to Download
