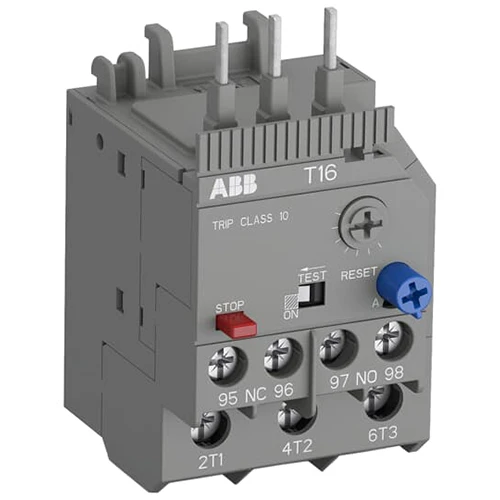

ABB T16-1.7 Thermal Overload Relay
Awaiting product image

ABB T16-1.7 Thermal Overload Relay

£56.46 Incl. VAT

The T16-1.7 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the mini contactors or block contactors. Single mounting kits are available as accessory. · · · 3 protected poles · · DIN rail mounting · · 1xNC/1xNO · · IP20 rated · · Pollution degree: 3

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SAZ711201R1028 Categories: , , , Product Code: 2500499479

Description

Technical Specifications  Technical Specifications Thermal overload relay Max. rated operation voltage Ue 690 V Number of auxiliary contacts as change-over contact 1 Number of auxiliary contacts as normally closed contact 1 Number of auxiliary contacts as normally open contact 1 Reset function input No Adjustable current range 1.3 – 1.7 A Reset function push-button Yes Reset function automatic Yes · Technical Data Sheet – Click to Download
