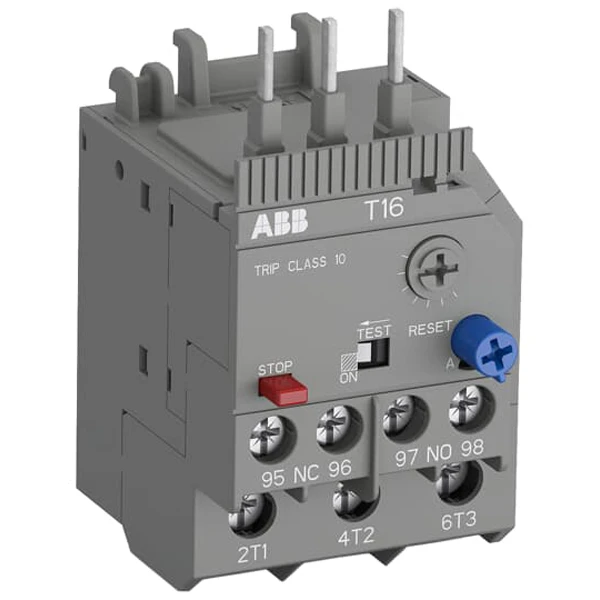

ABB T16-2.3 Thermal Overload Relay
£56.46 Incl. VAT
ABB 1SAZ711201R1031 3 Pole thermal overload relay with 1NO + 1NC auxiliary contacts. The T16-2.3 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relay is connected directly to the mini contactors or block contactors. Single mounting kits are available as accessory. · · · Height: 76.7mm · · Range: T16 · · Width: 45mm · · Weight: 100g · · Depth: 53.5mm · · Reset Type: Automatic / Manual · · Overload Range: 1.7 – 2.3A
Out of Stock
Description
Technical Specifications Technical Specifications Thermal overload relay Number of auxiliary contacts as change-over contact 1 Number of auxiliary contacts as normally closed contact 1 Max. rated operation voltage Ue 690 V Number of auxiliary contacts as normally open contact 1 Adjustable current range 1.7 – 2.3 A Reset function automatic Yes Reset function input No Reset function push-button Yes · Technical Data Sheet – Click to Download
