ABB TBC7-30-01-51 Mini Contactor 17-32VDC
ABB TBC7-30-01-51 Mini Contactor 17-32VDC

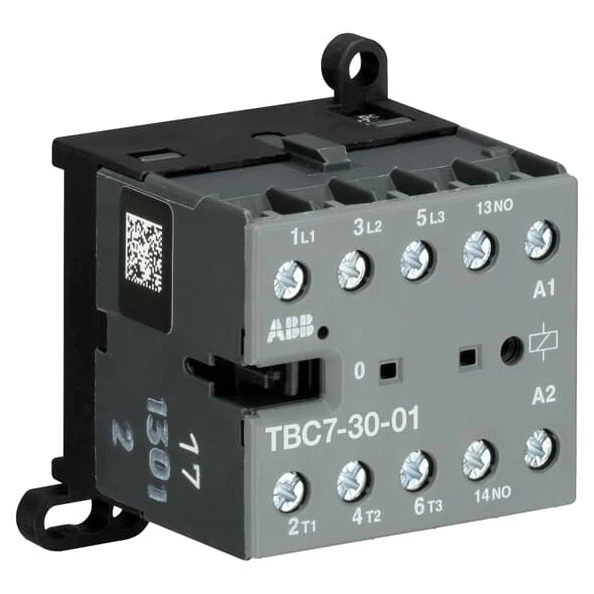

ABB TBC7-30-01-51 Mini Contactor 17-32VDC - Image 2

ABB TBC7-30-01-51 Mini Contactor 17-32VDC

£152.92 Incl. VAT

The TBC7-30-01 Mini Contactor Is A Compact 3 Pole Contactor With 1 Auxiliary Contact And Screw Terminals. They Are Ideally Suited For Applications Where Reliability Is A Must And Space Is At A Premium. Mini Contactors Are Used In Residential Buldings, Commercial Buildings And Industrial Applications For The Control Of Single Or Three-Phase Loads Up To 5.5 KW (AC-3) And 20 A / 690 V (AC-1) Or Switching Of Control Signals. Further Features Are The Noiseless And Hum-Free Coil, A Switch Position Indication And The Integrated Possibility For Rail Or Wall Mounting. · · · Mini Contactor · · 3 Pole

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GJL1313061R5011 Categories: , , , Brand: Product Code: 2501066000

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of main contacts as normally open contact 3 Number of normally closed contacts as main contact 0.00 Rated operation power at AC-3, 400 V 5.5 kW Number of auxiliary contacts as normally open contact 0.00 Number of auxiliary contacts as normally closed contact 1 Rated operation current Ie at AC-3, 400 V 12 A Rated operation power NEMA – kW Rated operation current Ie at AC-4, 400 V – A Rated operation current Ie at AC-1, 400 V 20 A Rated operation power at AC-4, 400 V – kW Rated control supply voltage at AC 50 Hz – – – V Rated control supply voltage at AC 60 Hz – – – V Rated control supply voltage at DC 17 – 32 V Modular version No · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1648004
