ABB Terminal Block 12AWG Stranded Polyamide 15g 5.2x65.5x70.4mm Grey
ABB Terminal Block 12AWG Stranded Polyamide 15g 5.2x65.5x70.4mm Grey
ABB Terminal Block 12AWG Stranded Polyamide 15g 5.2x65.5x70.4mm Grey - Image 2

ABB Terminal Block 12AWG Stranded Polyamide 15g 5.2×65.5×70.4mm Grey

£1.63 Incl. VAT

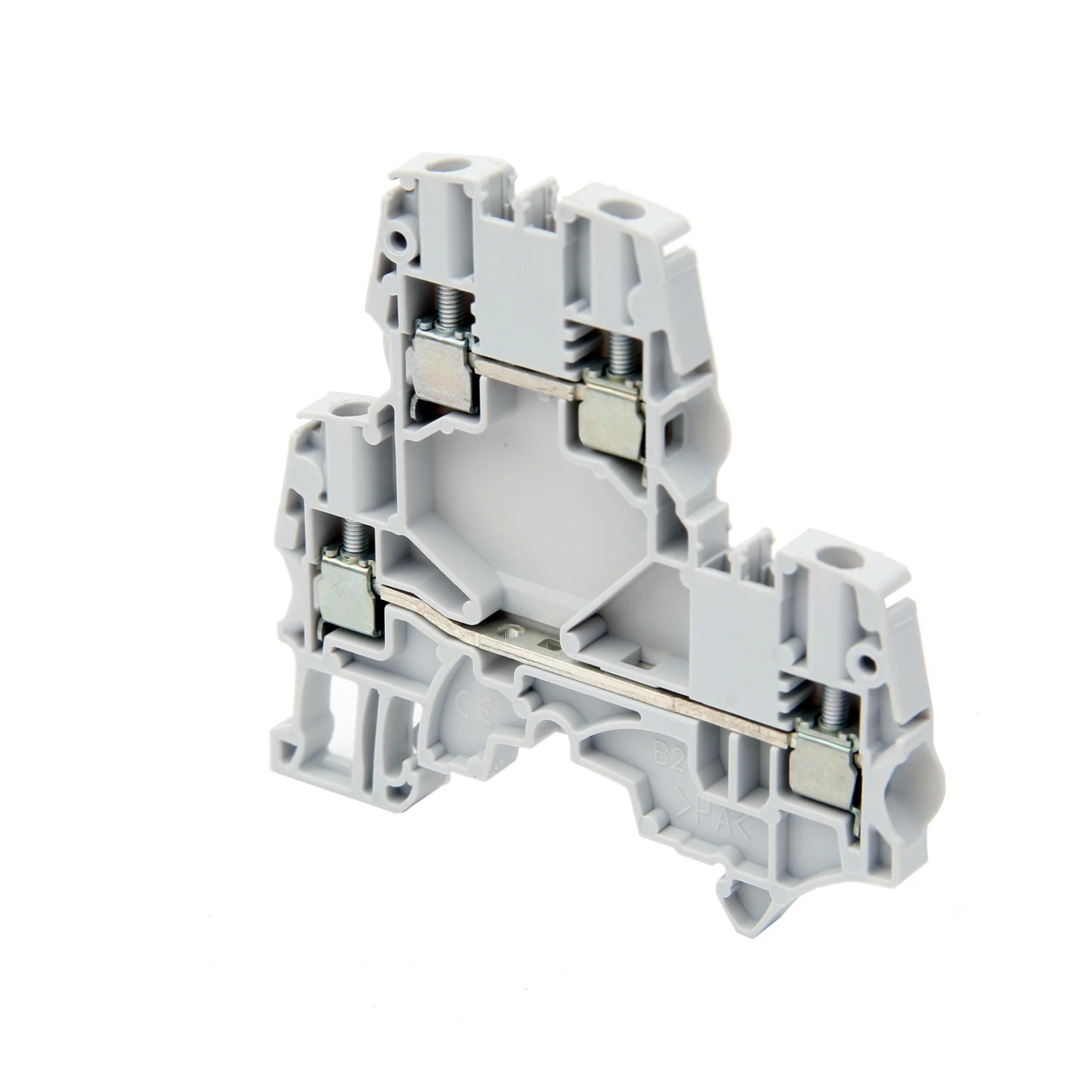

ABB 1SNK505210R0000 grey double deck screw clamp terminal block with feed through function. The ZS4-D2 terminal block is made up of polyamide insulator. It saves space with double deck terminal blocks, 2 independent circuits connected in just 5.2mm spacing and customizing the ZS4-D2 by soldering electronic components in the existing linking bars punching. It features 4mm² rated cross-section and A3 to B3 gauge. It provides IP20 main terminals degree of protection according to IEC 60529, IEC 60947-1, EN 60529. · · · Colour: Grey · · Conductor Size: 12 AWG Stranded · · Height: 70.4mm · · Material: Polyamide · · Width: 5.2mm · · Weight: 15g · · Depth: 65.5mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SNK505210R0000 Category: Brand: Product Code: 2500304286

Description

Technical Specifications  Technical Specifications Feed-through terminal block Colour Grey Material insulation body Thermoplastic Mounting method DIN rail (top hat rail) 35 mm Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Rated current In 29 A Rated voltage 1000 V Number of clamp positions per level 2 Number of levels 2 Connectable conductor cross section solid-core 0.2 – 4 mm² Operating temperature -55 – 110 °C Connectable conductor cross section fine-strand with cable end sleeve 0.22 – 2.5 mm² Connectable conductor cross section multi-wired 0.22 – 1.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.22 – 4 mm² Internally connected stages No Closing plate required Yes Explosion-tested version ‘Ex e’ Yes
