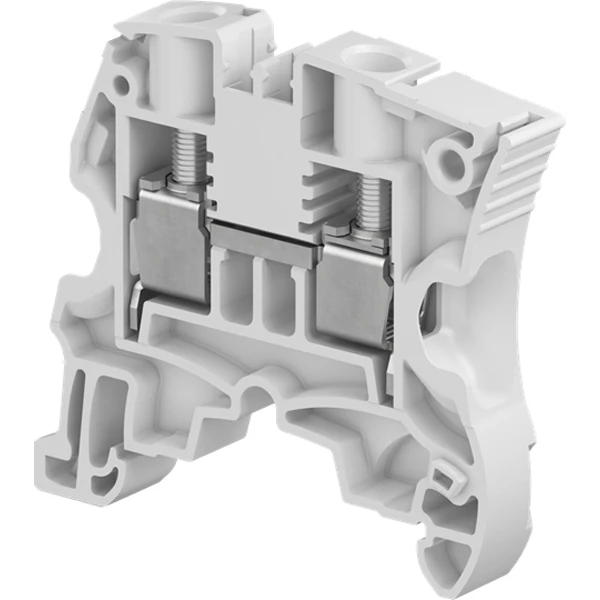

ABB Terminal Block 6AWG Stranded Polyamide 14g 8×47.3x53mm Grey
£3.86 Incl. VAT
ABB 1SNK508010R0000 grey screw clamp terminal block with feed through function. The ZS10 terminal block is made up of polyamide insulator. It features 12mm wire stripping length. It saves space by connecting conductors up to 10 mm² (without insulated ferrule, CB certified) 6AWG in just 8mm spacing and it is perfectly adapted to solar applications. It provides IP20 main terminals degree of protection according to IEC 60529, IEC 60947-1, EN 60529. · · · Colour: Grey · · Conductor Size: 6 AWG Stranded · · Height: 53mm · · Material: Polyamide · · Width: 8mm · · Weight: 14g · · Depth: 47.3mm
Out of Stock
Description
Technical Specifications Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Grey Mounting method DIN rail (top hat rail) 35 mm Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated current In 57 A Rated voltage 1000 V Number of levels 1 Operating temperature -55 – 110 °C Number of clamp positions per level 2 Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 10 mm² Connectable conductor cross section solid-core 0.5 – 10 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 6 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes
