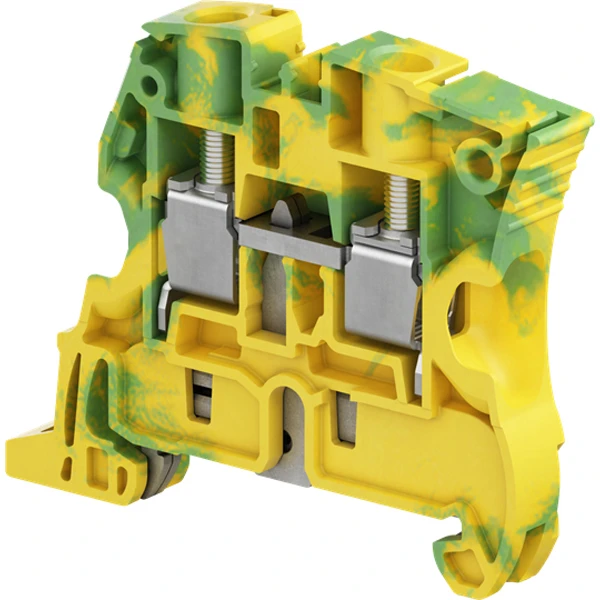

ABB Terminal Block 6AWG Stranded Polyamide 23g 8×47.3×59.5mm Green/yellow
£10.38 Incl. VAT
ABB 1SNK508150R0000 green/yellow screw clamp terminal block with ground function. The ZS10-PE terminal block is made up of polyamide insulator. It features 10mm² rated cross-section and 12mm wire stripping length. It also features rail contact non operator dependent, performances above the requirements of IEC 60947-7-2 terminal block standard and secured snap on or remove from the rail. It provides IP20 main terminals degree of protection according to IEC 60529, IEC 60947-1, EN 60529. · · · Colour: Green/yellow · · Conductor Size: 6 AWG Stranded · · Height: 59.5mm · · Material: Polyamide · · Width: 8mm · · Weight: 23g · · Depth: 47.3mm
Out of Stock
Description
Technical Specifications Technical Specifications Earth terminal block Material insulation body Thermoplastic Mounting method DIN rail (top hat rail) 35 mm Colour Green/yellow Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Number of clamp positions per level 2 Number of levels 1 Operating temperature -40 – 110 °C Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 10 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 10 mm² Connectable conductor cross section solid-core 0.5 – 10 mm² PEN function possible No Closing plate required Yes
