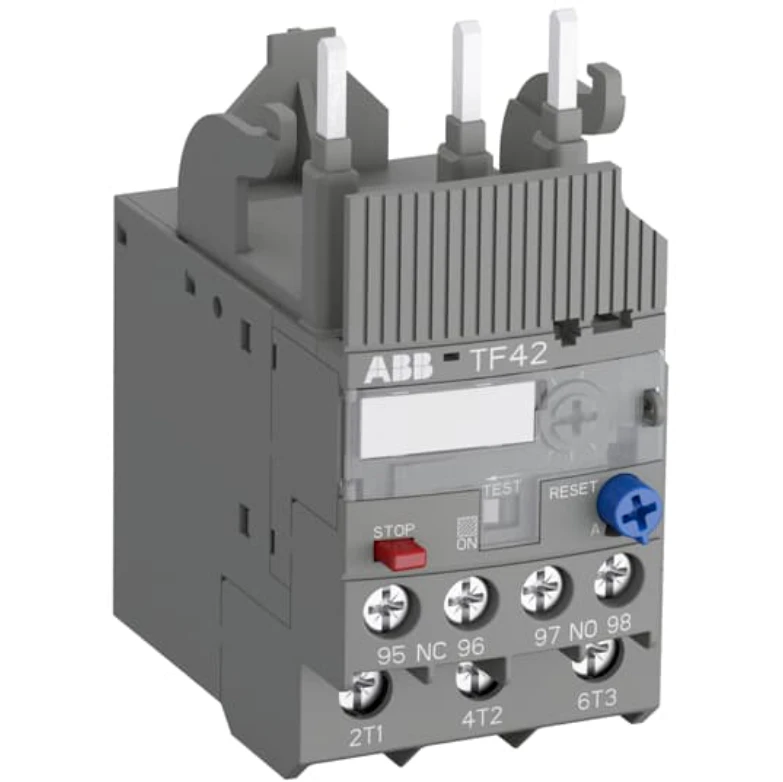

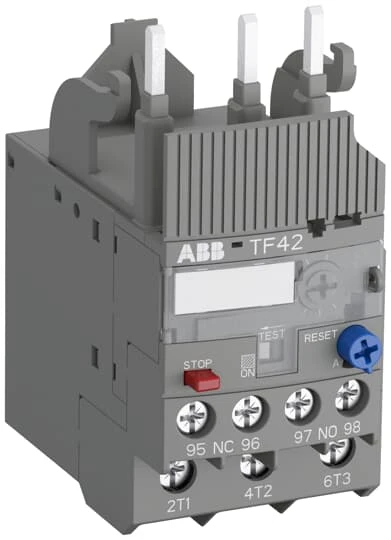

ABB TF42-0.13 Thermal Overload Relay
£57.32 Incl. VAT
The TF42-0.13 Thermal Overload Relay Is An Economic Electromechanical Protection Device For The Main Circuit. It Offers Reliable And Fast Protection For Motors In The Event Of Overload Or Phase Failure. The Device Has Trip Class 10. Further Features Are The Temperature Compensation, Trip Contact (NC), Signal Contact (NO), Automatic- Or Manual Reset Selectable, Trip-Free Mechanism, STOP Function And A Trip Indication. The Overload Relays Are Connected Directly To The Block Contactors. Single Mounting Kits Are Available As Accessory. · · · Thermal Overload Relay · · Manual or Auto Reset · · Trip Class 10 · · Power Rating: 4kW · · Voltage Rating: 415V · · Weight: 0.92kg · · Frequency: 50 – 60Hz · · IP Rating: IP657
Out of stock
Description
Technical Specifications Technical Specifications Thermal overload relay Number of auxiliary contacts as normally closed contact 1 Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as change-over contact 1 Max. rated operation voltage Ue 690 V Adjustable current range 0.1 – 0.13 A Reset function push-button Yes Reset function input No Reset function automatic Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
