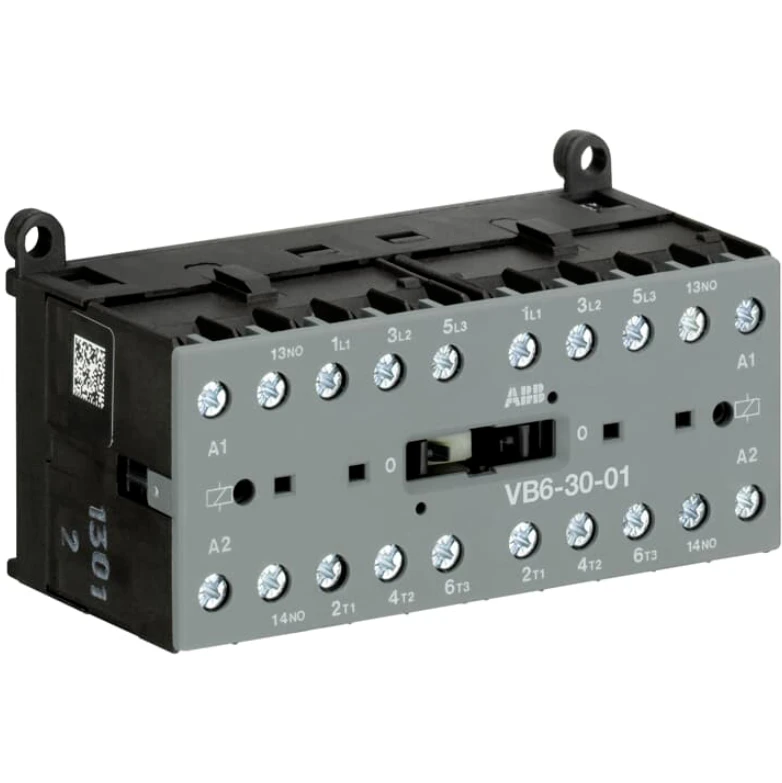

ABB VB6-30-01-80 Mini Rev.Contactor 220-240V 40-450Hz
Awaiting product image

ABB VB6-30-01-80 Mini Rev.Contactor 220-240V 40-450Hz

£92.12 Incl. VAT

The VB6-30-01 Mini Reversing Contactor Is A Compact 3 Pole Contactor With 1 Auxiliary Contact, Screw Terminals And Normal Mechanical Interlock. They Are Ideally Suited For Applications Where Reliability Is A Must And Space Is At A Premium. Mini Reversing Contactors Are Used In Residential Buldings, Commercial Buildings And Industrial Applications For The Control Of Three-Phase Motor Loads Up To 4 KW (AC-3). Further Features Are The Silent Coil, A Switch Position Indication And The Integrated Possibility For Rail Or Wall Mounting. · · · Mini Reversing Contactor · · 3 Pole

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GJL1211901R8010 Categories: , , , , Product Code: 2500009894

Description

Technical Specifications  Technical Specifications Combination of contactors Rated operation power at AC-3, 400 V 4 kW Number of main contacts as normally open contact 3 Rated operation current Ie at AC-3, 400 V 9 A Rated operation current Ie at AC-1, 400 V 6 A Rated control supply voltage at DC – – – V Rated operation power NEMA 1.4914 kW Rated control supply voltage at AC 60 Hz 220 – 220 V Rated control supply voltage at AC 50 Hz 220 – 240 V Rail mounting possible Yes · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1648096 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1646762 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1646763
