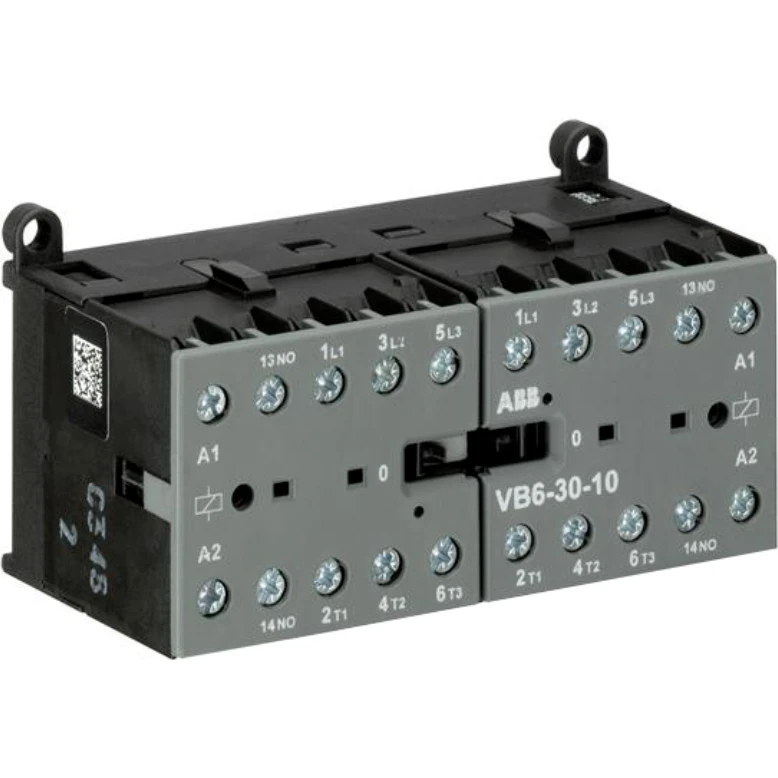

ABB VB6-30-10-80 Mini Rev.Contactor 220-240V 40-450Hz
ABB VB6-30-10-80 Mini Rev.Contactor 220-240V 40-450Hz
ABB VB6-30-10-80 Mini Rev.Contactor 220-240V 40-450Hz - Image 2

ABB VB6-30-10-80 Mini Rev.Contactor 220-240V 40-450Hz

£91.64 Incl. VAT

The VB6-30-10 Mini Reversing Contactor Is A Compact 3 Pole Contactor With 1 Auxiliary Contact, Screw Terminals And Normal Mechanical Interlock. They Are Ideally Suited For Applications Where Reliability Is A Must And Space Is At A Premium. Mini Reversing Contactors Are Used In Residential Buldings, Commercial Buildings And Industrial Applications For The Control Of Three-Phase Motor Loads Up To 4 KW (AC-3). Further Features Are The Silent Coil, A Switch Position Indication And The Integrated Possibility For Rail Or Wall Mounting. · · · Mini Reversing Contactor · · 3 Pole

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GJL1211901R8100 Categories: , Product Code: 2500009896

Description

Technical Specifications  Technical Specifications Combination of contactors Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 4 kW Rated operation current Ie at AC-1, 400 V 6 A Rated operation current Ie at AC-3, 400 V 9 A Rated operation power NEMA 1.4914 kW Rated control supply voltage at DC – – – V Rated control supply voltage at AC 60 Hz 220 – 220 V Rated control supply voltage at AC 50 Hz 220 – 240 V Rail mounting possible Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
