ABB VEM4 Mechanical and Electrical Interlock Unit
Awaiting product image

ABB VEM4 Mechanical and Electrical Interlock Unit

£30.01 Incl. VAT

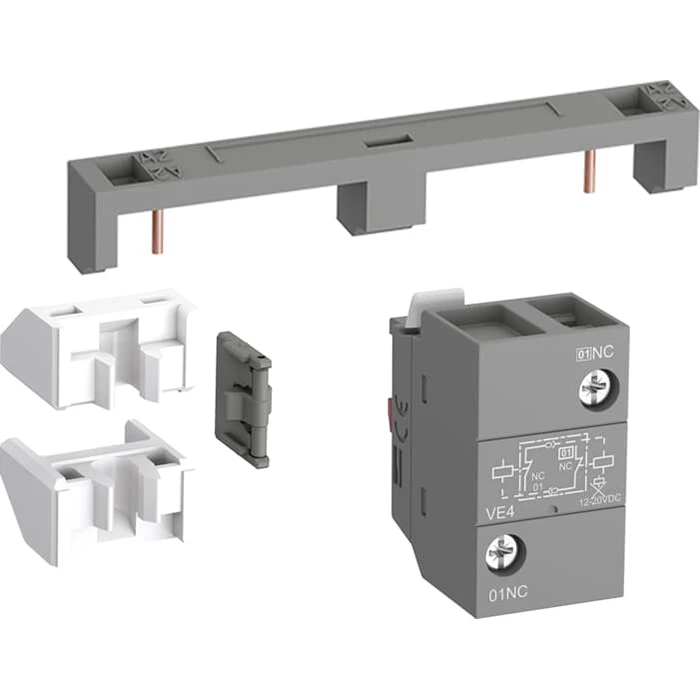

Mechanical And Electrical Interlock Sets. VEM4 Mechanical And Electrical Interlock Set For The Interlocking Of Two AF Contactors. VEM4 Set Includes A Mechanical Interlock Unit VM4 With 2 Fixing Clips (BB4) And A VE4 Electrical Interlock Block With A2-A2 Connection. Fixing The Electrical Interlock Block To The Contactor Front Face Connects The 2 Built-In N.C. Interlocking Contacts With The Two Coils. VE4 Block Must Be Used With A2-A2 Connection To Respect The Electrical Connection Diagram. · · · Mechanical and Electrical Interlock Unit · · Range: AF · · Weight: 35g · · Normal State Configuration: 1NO/1NC

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SBN030111R1000 Categories: , Brand: Product Code: 2500385263

Description

Technical Specifications  Technical Specifications Mechanic interlock for switch Number of contacts as normally closed contact 2 Number of contacts as normally open contact 0 Auxiliary contacts, extendable No · Technical Data Sheet – Click to Download
