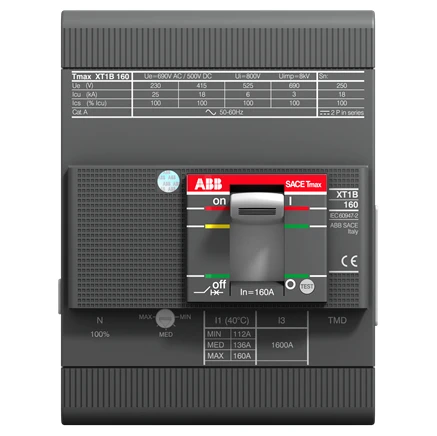

ABB XT1B 160 TMD 32-450 4p F F
£494.44 Incl. VAT
C.BREAKER TMAX XT1B 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 32-450 A · · · Moulded Case Circuit Breaker · · Rated Current 32A · · 4 Pole
Out of Stock
Description
Technical Specifications Technical Specifications Moulded case circuit breaker (MCCB) Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 18 kA Number of auxiliary contacts as change-over contact 0.00 Number of auxiliary contacts as normally open contact 0.00 Number of poles 4 Rated permanent current Iu 32 A Number of auxiliary contacts as normally closed contact 0.00 Overload release current setting 22.4 – 32 A Rated voltage 690 – 690 V Adjustment range short-term delayed short-circuit release – – – A Motor drive optional Yes Adjustment range undelayed short-circuit release 450 – 450 A DIN rail (top hat rail) mounting optional No Complete device with protection unit Yes Motor drive integrated No Switched-off indicator available No With integrated under voltage release No Integrated earth fault protection No Suitable for DIN rail (top hat rail) mounting No
