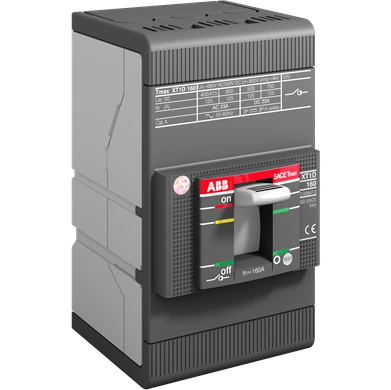

ABB XT1D 160 3p F F

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of poles 3 Conditioned rated short-circuit current Iq – kA Number of auxiliary contacts as normally open contact 0.00 Number of auxiliary contacts as normally closed contact 0.00 Rated operation power at AC-3, 400 V – kW Rated permanent current Iu 160 A Rated operation power at AC-23, 400 V – kW Rated short-time withstand current lcw 2 kA Number of switches – Number of auxiliary contacts as change-over contact 0.00 Switching power at 400 V – kW Rated permanent current at AC-21, 400 V 160 A Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-23, 400 V – A Version as maintenance-/service switch No Rated operating voltage 0 – 690 V Version as emergency stop installation No Version as safety switch No Version as main switch Yes Motor drive integrated No Suitable for front mounting 4-hole No Suitable for intermediate mounting No Suitable for front mounting centre No Version as reversing switch No Motor drive optional Yes Suitable for distribution board installation Yes Interlockable Yes Voltage release optional No
