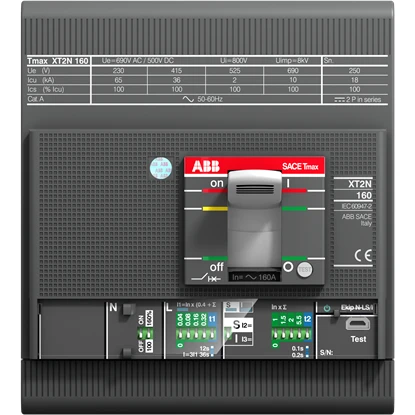

ABB XT2N 160 Ekip LSI In=160A 4p F F In=100%

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Number of auxiliary contacts as change-over contact 0.00 Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 36 kA Rated permanent current Iu 160 A Number of auxiliary contacts as normally closed contact 0.00 Number of auxiliary contacts as normally open contact 0.00 Overload release current setting 64 – 160 A Number of poles 4 Adjustment range short-term delayed short-circuit release 160 – 1600 A Adjustment range undelayed short-circuit release 160 – 1600 A With integrated under voltage release No Rated voltage 690 – 690 V Integrated earth fault protection No Suitable for DIN rail (top hat rail) mounting No Motor drive integrated No Switched-off indicator available No DIN rail (top hat rail) mounting optional No Complete device with protection unit Yes Motor drive optional Yes
