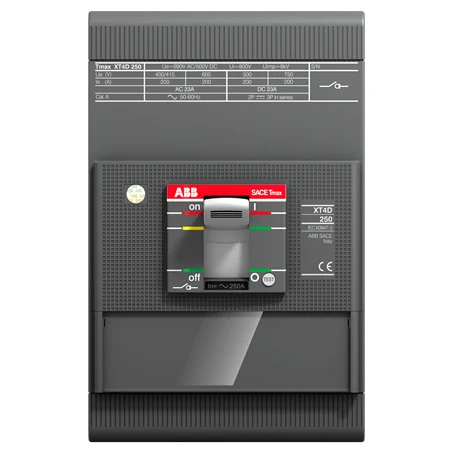

ABB XT4D 250 3p F F

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of auxiliary contacts as normally closed contact 0.00 Number of auxiliary contacts as normally open contact 0.00 Rated operation power at AC-3, 400 V – kW Conditioned rated short-circuit current Iq – kA Number of auxiliary contacts as change-over contact 0.00 Number of switches – Rated permanent current Iu 250 A Rated short-time withstand current lcw 3.6 kA Rated permanent current at AC-21, 400 V 250 A Rated operation power at AC-23, 400 V – kW Switching power at 400 V – kW Rated permanent current at AC-23, 400 V – A Max. rated operation voltage Ue AC 690 V Number of poles 3 Rated operating voltage 0 – 690 V Version as maintenance-/service switch No Version as safety switch No Version as emergency stop installation No Version as reversing switch No Motor drive optional Yes Suitable for distribution board installation Yes Interlockable Yes Version as main switch Yes Motor drive integrated No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for intermediate mounting No Voltage release optional No · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1670576 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1670578
