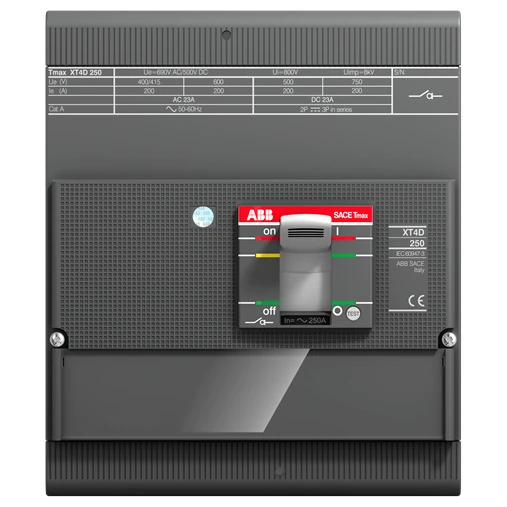

ABB XT4D 250 4p F F

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated operation power at AC-3, 400 V – kW Number of auxiliary contacts as normally closed contact 0.00 Number of poles 4 Conditioned rated short-circuit current Iq – kA Number of auxiliary contacts as normally open contact 0.00 Rated permanent current Iu 250 A Rated permanent current at AC-21, 400 V 250 A Rated short-time withstand current lcw 3.6 kA Rated permanent current at AC-23, 400 V – A Switching power at 400 V – kW Number of auxiliary contacts as change-over contact 0.00 Max. rated operation voltage Ue AC 690 V Number of switches – Rated operation power at AC-23, 400 V – kW Rated operating voltage 0 – 690 V Version as maintenance-/service switch No Version as safety switch No Version as emergency stop installation No Version as main switch Yes Motor drive integrated No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for intermediate mounting No Suitable for distribution board installation Yes Interlockable Yes Version as reversing switch No Motor drive optional Yes Voltage release optional No · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1670579 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1670581
