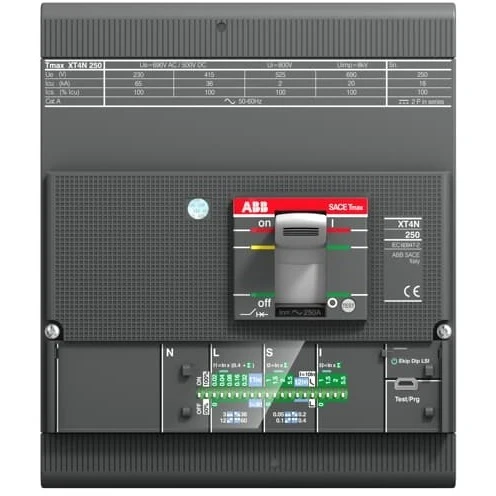

ABB XT4S 250 Ekip LSI In=250A 4p F F
£3,445.79 Incl. VAT
C.BREAKER TMAX XT4S 250 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LSI R 250 A · · · Moulded Case Circuit Breaker · · Rated Current 250A · · 4 Pole
Out of Stock
Description
Technical Specifications Technical Specifications Moulded case circuit breaker (MCCB) Number of poles 4 Number of auxiliary contacts as normally open contact 0.00 Number of auxiliary contacts as change-over contact 0.00 Rated permanent current Iu 250 A Number of auxiliary contacts as normally closed contact 0.00 Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 50 kA Overload release current setting 100 – 250 A Adjustment range short-term delayed short-circuit release 250 – 2500 A Rated voltage 690 – 690 V Motor drive optional Yes Adjustment range undelayed short-circuit release 250 – 2500 A Complete device with protection unit Yes DIN rail (top hat rail) mounting optional No Motor drive integrated No Switched-off indicator available No With integrated under voltage release No Integrated earth fault protection No Suitable for DIN rail (top hat rail) mounting No · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1671219 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1671221
