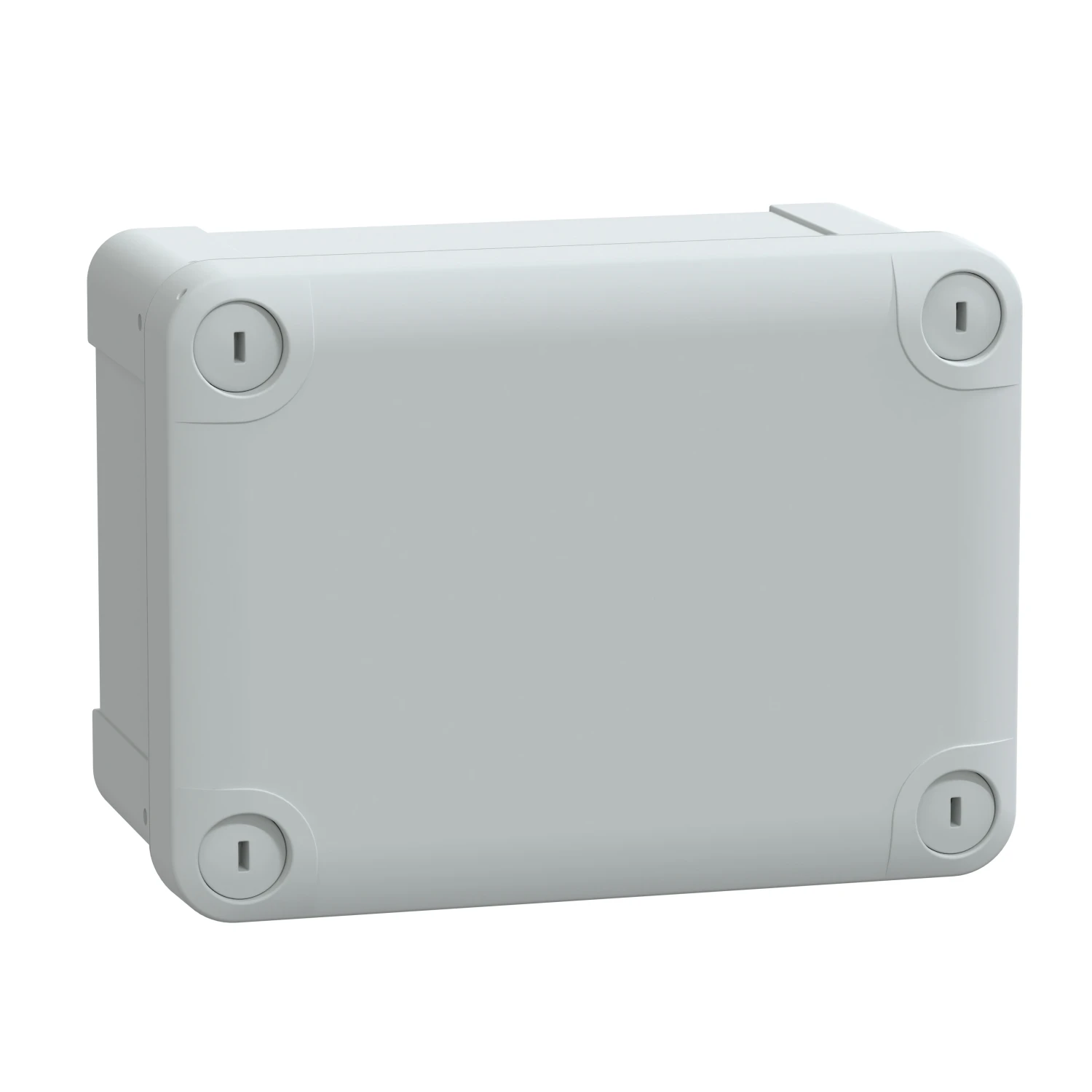

ABS Box IP66 IK07 RAL7035 Internal H150W105D80 External H164W121D87 Opaque Cover H20
£15.68 Incl. VAT
ABS box IP66 IK07 RAL7035 Int.H150W105D80 Ext.H164W121D87 Opaque cover H20. range: Thalassa – product name: Thalassa TBS – device application: multi-purpose – height: 164 mm – width: 121 mm – depth: 87 mm – internal height: 150 mm – internal width: 105 mm – internal depth: 80 mm – enclosure mounting: wall mounted – device composition: 1 x body, 1 x cover, 4 x cover screw – quantity per set: set of 2 – body type: one piece moulded – cover fixing: plastic screws. · · · Thalassa TBS industrial ABS box with opaque cover H20. · · Int is 150 x 105 x 80 mm. Ext is 164 x 121 x 87 mm. · · Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. · · Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. · · ABS (acrylonitrile butadiene-styrene). · · IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. · · Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Out of stock
Description
Technical Specifications Technical Specifications Empty cabinet Width 121 mm Width in number of modular spacings – Height 164 mm Recess depth – mm Number of rows 0 Plate thickness cabinet 12.5 mm Plate thickness door/cover 12.5 mm Nominal current (In) – A Number of openings for flange plates 0 Number of conduit inlets 2 Extension possible No With mounting plate No Transparent cover/door No RAL number 7035 Depth 87 mm Internal depth 80 mm Number of modules 0 With lock No Suitable for lightning protection Yes Suitable for outdoor use Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192490
