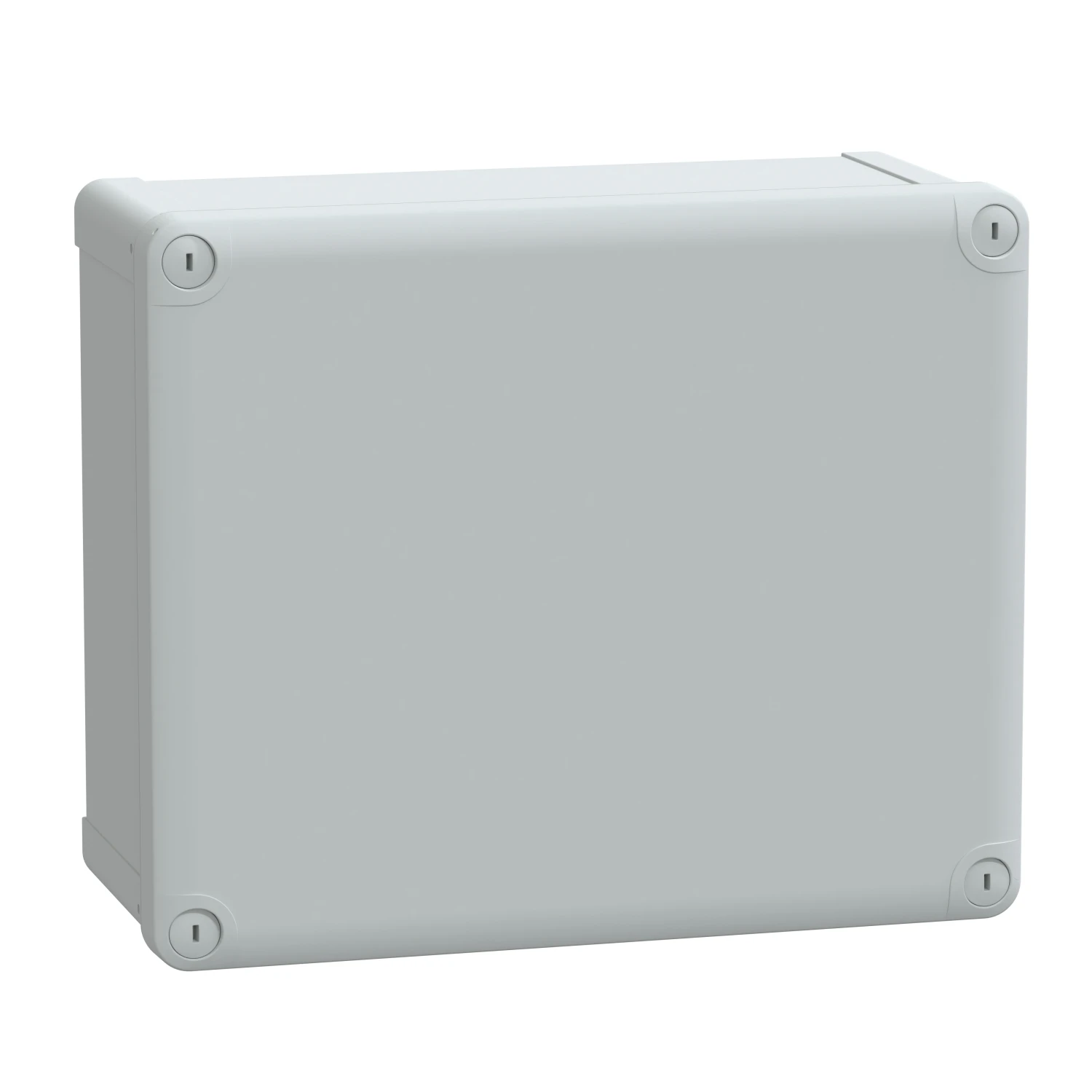

ABS Box IP66 IK07 RAL7035 Internal H275W225D120 External H291W241D128 Opaque Cover H20
ABS Box IP66 IK07 RAL7035 Internal H275W225D120 External H291W241D128 Opaque Cover H20
ABS Box IP66 IK07 RAL7035 Internal H275W225D120 External H291W241D128 Opaque Cover H20 - Image 2
ABS Box IP66 IK07 RAL7035 Internal H275W225D120 External H291W241D128 Opaque Cover H20 - Image 3

ABS Box IP66 IK07 RAL7035 Internal H275W225D120 External H291W241D128 Opaque Cover H20

£52.14 Incl. VAT

Thalassa TBS industrial ABS box with opaque cover H20. Int is 275 x 225 x 120 mm. Ext is 291 x 241 x 128 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C). · · · Thalassa TBS industrial ABS box with opaque cover H20. · · Int is 275 x 225 x 120 mm. Ext is 291 x 241 x 128 mm. · · Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. · · Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. · · ABS (acrylonitrile butadiene-styrene). · · IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. · · Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NSYTBS292412 Categories: , , Brand: Part Number: 2500179227

Description

Technical Specifications  Technical Specifications Empty cabinet Depth 128 mm Height 291 mm RAL number 7035 Width 241 mm Number of modules 0 Number of conduit inlets 2 Nominal current (In) – A Plate thickness door/cover 12.5 mm Plate thickness cabinet 12.5 mm Number of rows 0 Recess depth – mm Width in number of modular spacings – Internal depth 120 mm Number of openings for flange plates 0 Transparent cover/door No With mounting plate No Extension possible No With lock No Suitable for outdoor use Yes Suitable for lightning protection Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192490
