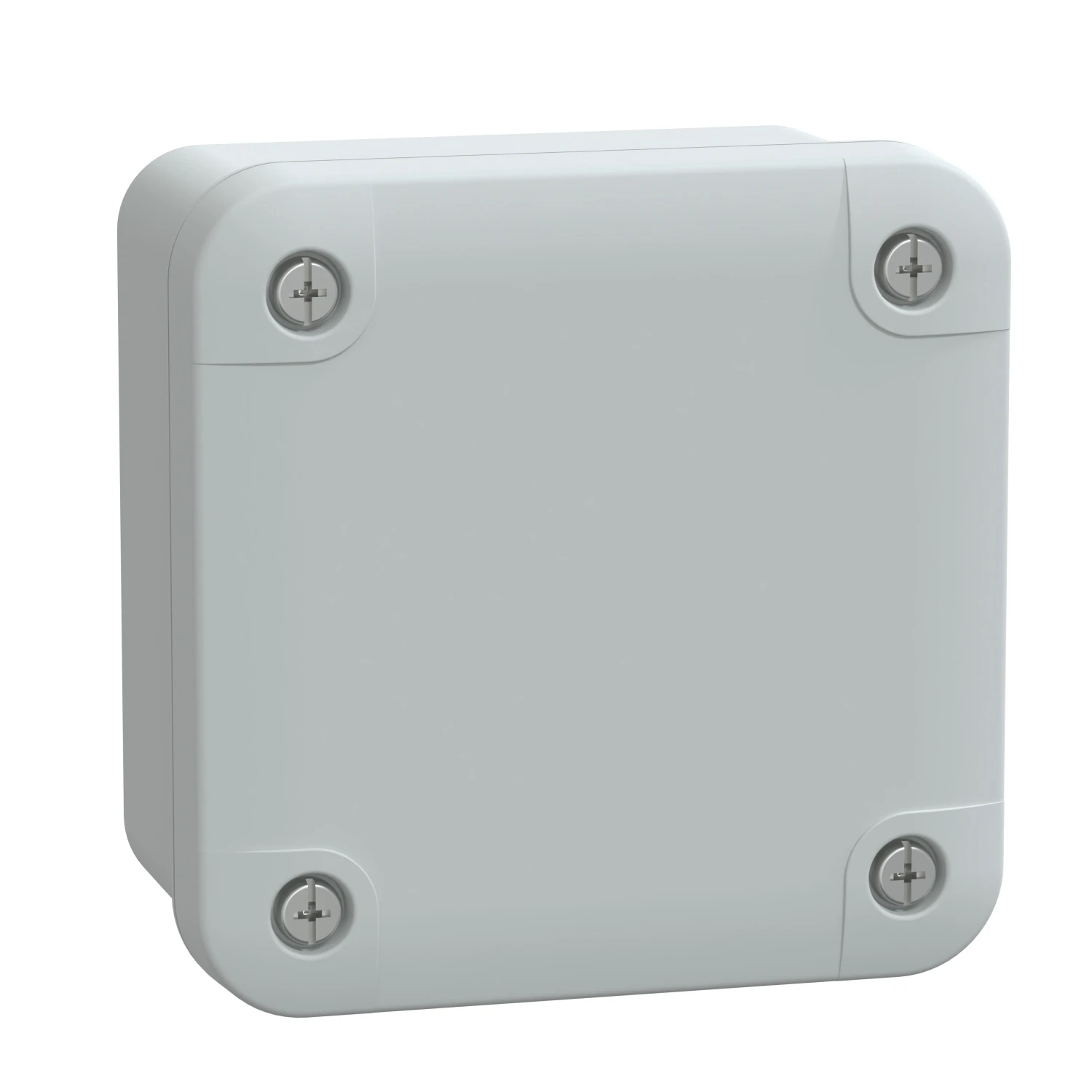

ABS Box IP66 IK07 RAL7035 Internal H80W80D65 External H89W89D51 Opaque Cover H10
£5.48 Incl. VAT
ABS box IP66 IK07 RAL7035 Int.H80W80D65 Ext.H89W89D51 Opaque cover H10. range: Thalassa – product name: Thalassa TBS – device application: multi-purpose – height: 89 mm – width: 89 mm – depth: 54 mm – internal height: 80 mm – internal width: 80 mm – internal depth: 47 mm – enclosure mounting: wall mounted – device composition: 1 x body, 1 x cover, 4 x cover screw – quantity per set: set of 5 – body type: one piece moulded – cover fixing: metal screws. · · · Thalassa TBS industrial ABS box with opaque cover H10. · · Int is 80 x 80 x 65 mm. Ext is 89 x 89 x 51 mm. · · Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. · · Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. · · ABS (acrylonitrile butadiene-styrene).
Out of stock
Description
Technical Specifications Technical Specifications Empty cabinet Height 89.00 mm Depth 54.00 mm RAL number 7035.00 Width in number of modular spacings – Plate thickness cabinet 12.50 mm Plate thickness door/cover 12.50 mm Nominal current (In) – A Number of modules 0.00 Number of rows 0.00 Internal depth 47.00 mm Suitable for outdoor use Yes With mounting plate No Suitable for lightning protection Yes Recess depth 47.00 mm Width 89.00 mm Number of openings for flange plates 0.00 Number of conduit inlets 2.00 Transparent cover/door No Extension possible No With lock No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192490
