Acti9 Ic2000P+ (2 – 2000 Lux) Programmable Twilight Switch

£626.28 Incl. VAT

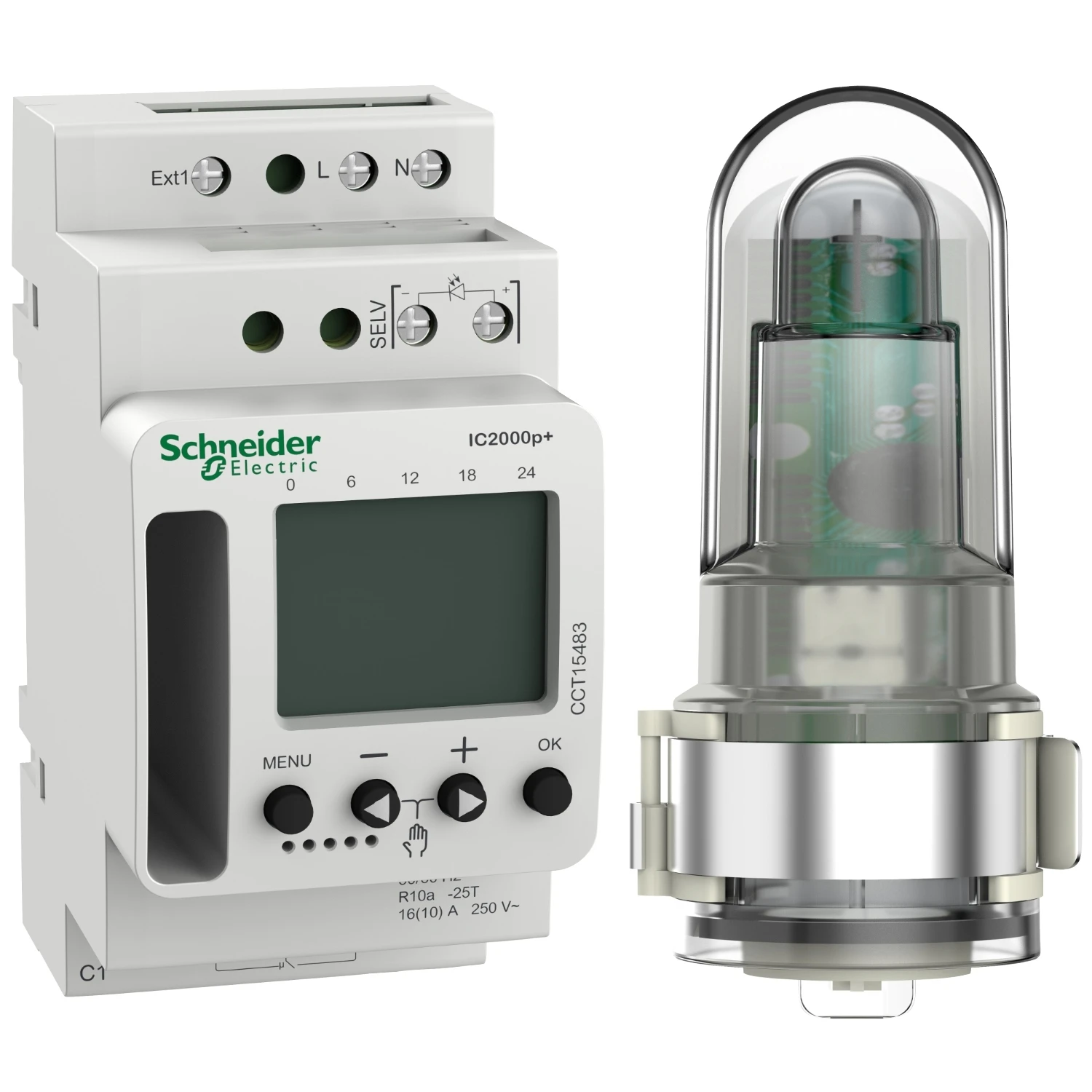

IC2000p+ digital twilight switch Width of 45mm (5 modules of 9mm) To start and stop an electric load according to measured light level between 2 – 2.000 lux. Integrated time switch with swiching cycle is 7 days (weekly) Number of switching operations: 56 Savings on mains cut off with battery reserve: 10 years Manual and remote overrides are possible. Delivered with outdoor wall-mounted sensor 1 channel output User manual holder on product left side allows to reach document easily · · · Provided equipment twilight sensor outdoor · · Number of channels 1 · · Maximum power consumption in W 0.8 W standby · · Rated operational voltage 230 V AC +10 % -15 % at 50/60 Hz · · Number of switching operations: 56

4 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CCT15483 Categories: , , Brand: Part Number: 2501267288

Description

Technical Specifications  Technical Specifications Twilight switch for distribution board Width in number of modular spacings 2.50 Recess depth 67.00 mm Rated voltage 230.00 V Rated switch current 16.00 A Max. load fluorescent lamp (parallel compensated) 730.00 VA Max. load fluorescent lamp 2300.00 VA Max. load fluorescent lamp (Duo circuit) 2300.00 VA Max. switching current (cos phi = 0.6) 10.00 A Max. incandescent lamp load 2600.00 W Rated voltage light sensor – V Max. conductor length light sensor 50.00 m Rated frequency 50.00 – 60.00 Hz Push button input Yes Adjustment range brightness value 2.00 – 2000.00 lx With programmable overnight shutoff Yes · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191283
