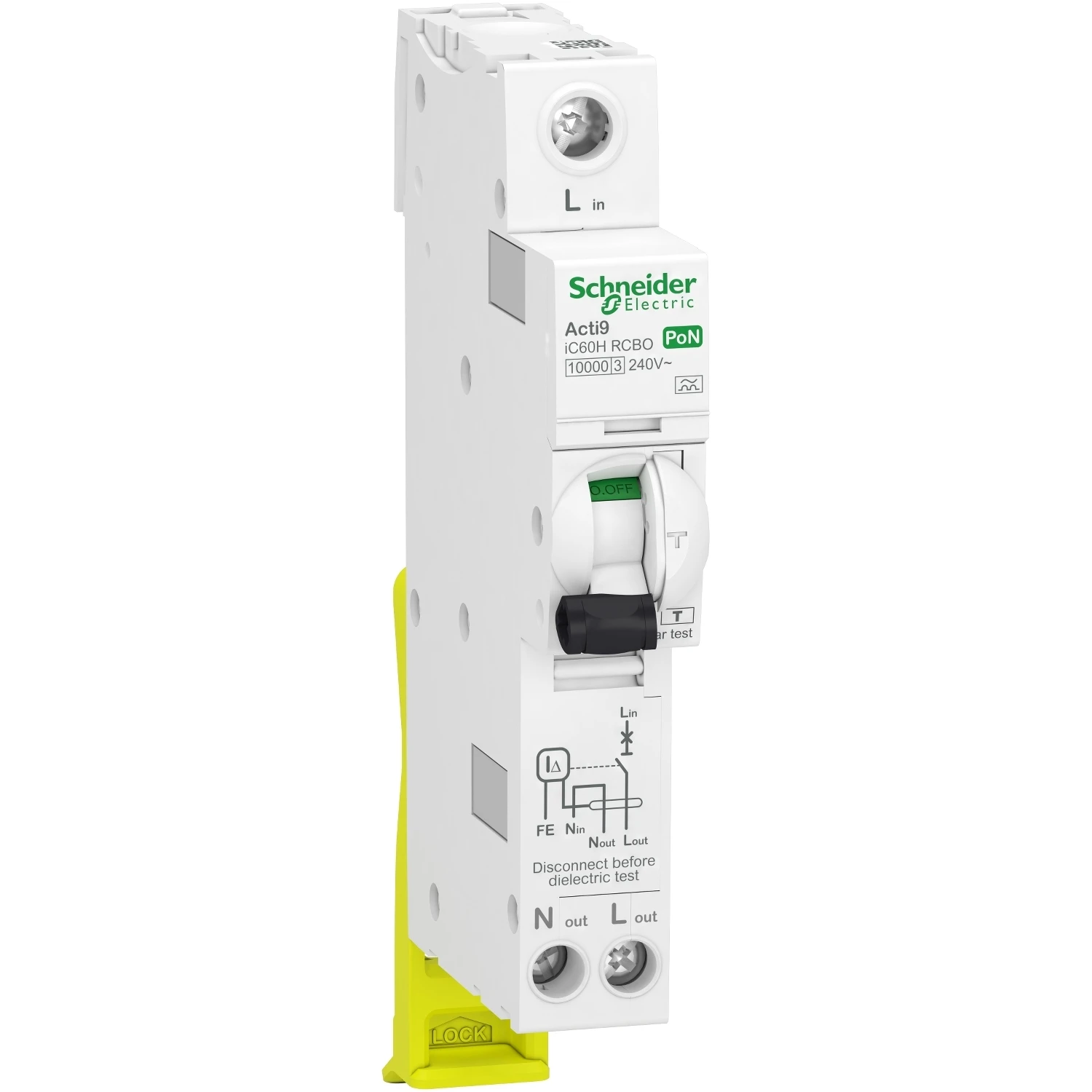

Schneider Electric Acti9 iC60H RCBO 1P+Ns 40A 10kA – Curve C – 100mA – Type A
£102.60 Incl. VAT
The Schneider Electric Acti9 ic60H PoN RCBO is designed to be install to the Schneider Acti9 Isobar P PoN Distribution Boards only. This 40Amp 100mA C Type single pole, 240 volt RCBO has a 10KA rating (In) with a ‘Plug on Neutral’ and earth that reduces installation time and is available in 10 & 100mA. · · · Plug on neutral cuts installation time by 50% and provides enhanced safety and reliability · · Compact design is perfect for space-saving solutions · · Padlockable in ON/OFF positions · · Clip-on DIN rail mounting mode · · 20000 cycle mechanical durability · · 5000 cycle electrical durability · · Green Premium Product
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Rated voltage 240 V Tripping characteristic (type/curve) C Rated current 40 A Width in number of modular spacings 1 Current limiting class 3 Over voltage category 2 Number of protected poles 1 Surge current capacity 0.25 kA Pollution degree 3 Rated insulation voltage Ui 400 V Number of poles (total) 2 Rated fault current 0.1 A Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Recess depth 72 mm Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -15 – 60 °C Concurrently switching N-neutral No Anti-nuisance tripping version No With interlocking device No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205383
