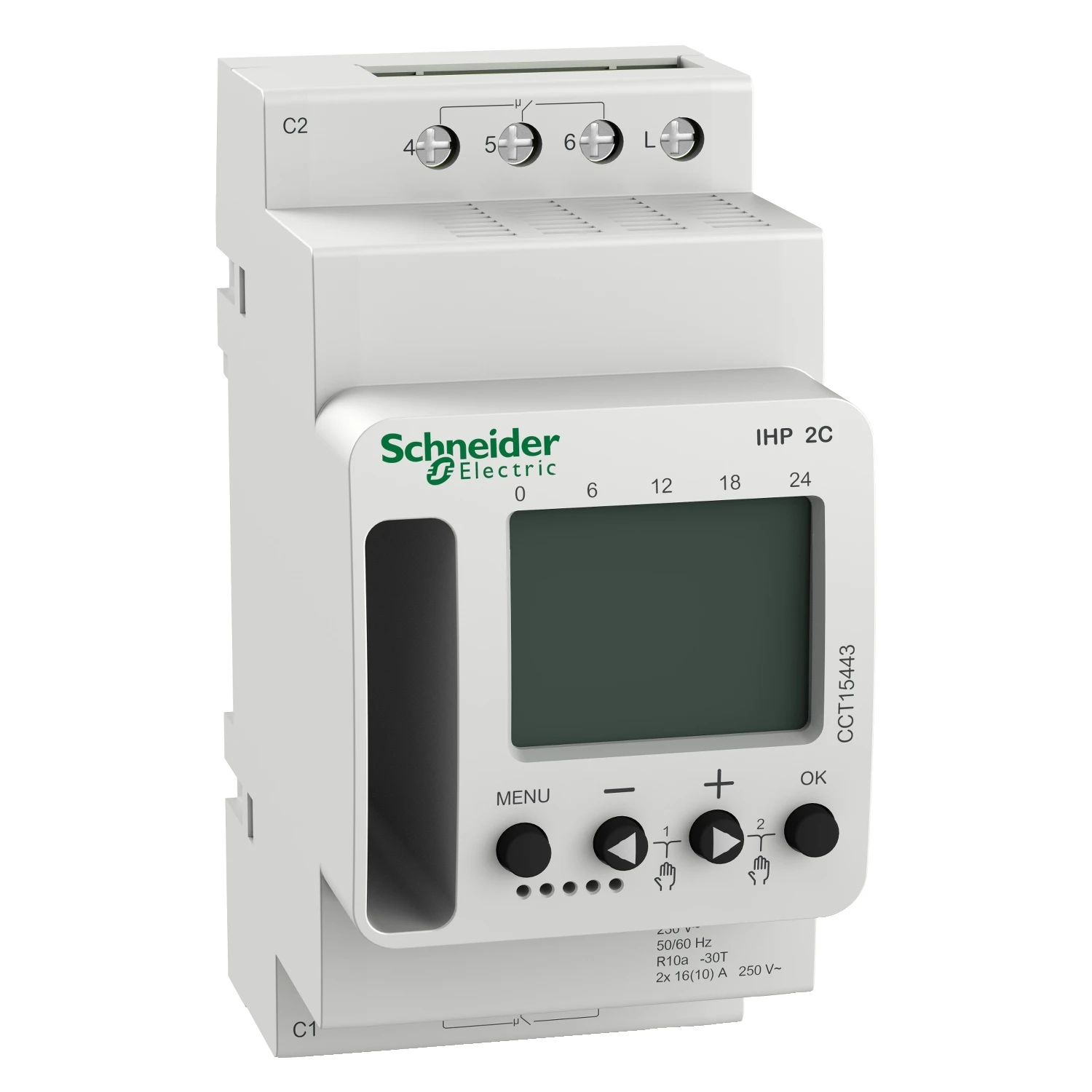

Schneider Electric Acti9 Ihp 2C W (24H/7D) Programmable Time Switch
Schneider Electric Acti9 Ihp 2C W (24H/7D) Programmable Time Switch
Schneider Electric Acti9 Ihp 2C W (24H/7D) Programmable Time Switch - Image 2
Schneider Electric Acti9 Ihp 2C W (24H/7D) Programmable Time Switch - Image 3

Schneider Electric Acti9 Ihp 2C W (24H/7D) Programmable Time Switch

£319.24 Incl. VAT

IHP digital time switch Width of 45mm (5 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 56 Savings on mains cut off with battery reserve: 10 years Manual override is possible 2 channel output User manual holder on product left side allows to reach document easily · · · Number of channels 2 · · Colour tint White · · Maximum power consumption in W 0.5 W standby · · Rated operational voltage 230 V AC +10 % -15 % at 50/60 Hz · · Number of switching operations: 56

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CCT15443 Category: Brand: Product Code: 2501267300

Description

Technical Specifications  Technical Specifications Digital time switch for distribution board Accuracy per day 0.25 s Width 45.00 mm Autonomy in years 10.00 Nominal switching current at 250 V AC 16.00 A Autonomy in hours 87600.00 Number of channels 2.00 Width in number of modular spacings 2.50 Depth 67.00 mm Height 92.60 mm Supply voltage 230.00 – 230.00 V Number of memory locations 56.00 Potential free switch contact Yes Frequency supply voltage 50.00 – 60.00 Hz Switching preselection Yes Text guidance in display Yes External pushbutton input Yes Memory card included No Manual operation Yes Automatic switching summer-/winter time Yes Radio-controlled (DCF77) No GPS (global positioning system) No Annual program No 60 min. program Yes 24 h program Yes Quartz controlled Yes Mains synchronous Yes Holiday program Yes Impulse program No Cycle program No Random program No Hour meter No Weekly program Yes Astro/solar program No Radio-controlled No External programming No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191301
