Acti9 Isobar B Replacement Pan Assembly 4 Ways
£181.57 Incl. VAT

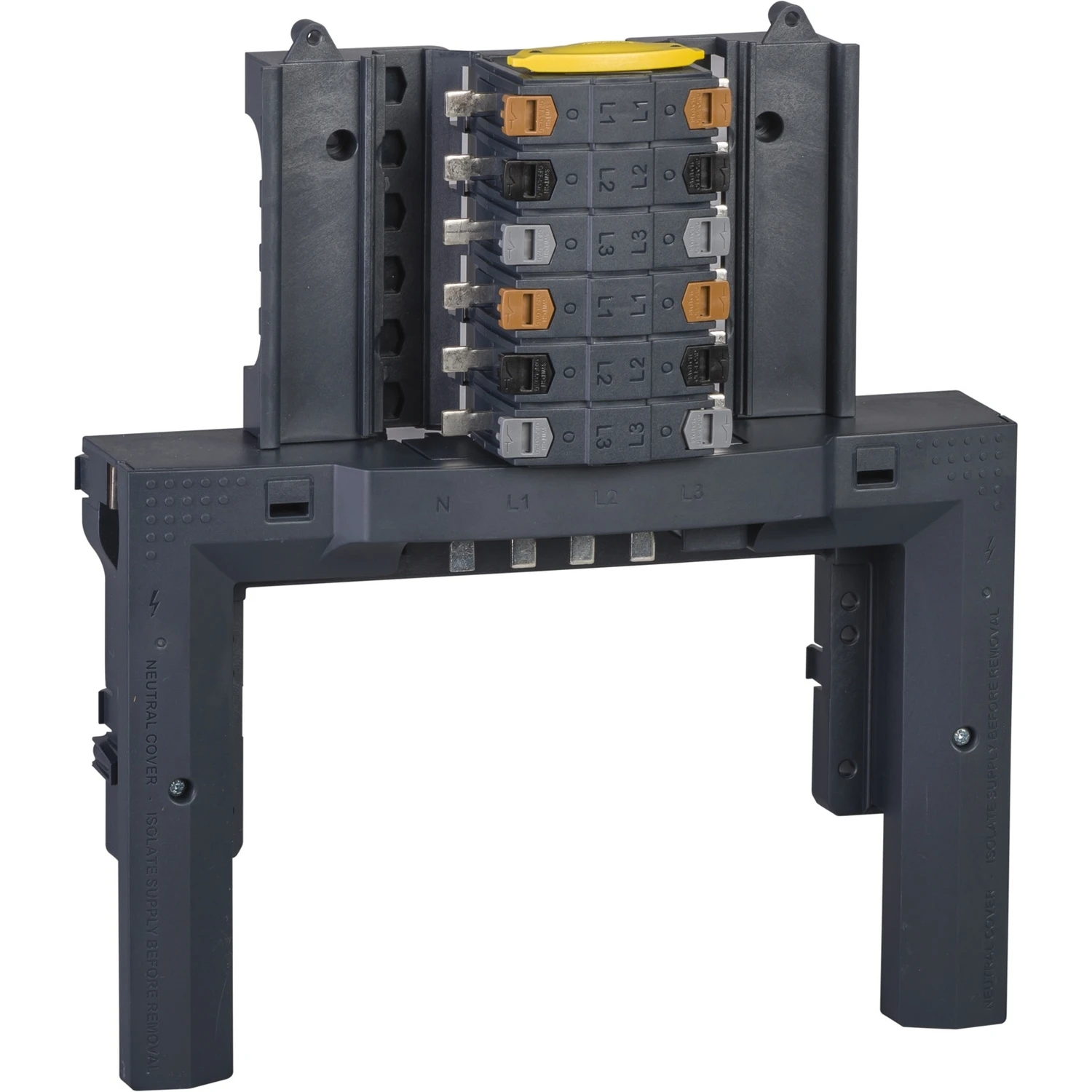

The SEA9BN4P is a replacement pan assembly for Schneider Electric’s Acti 9 Isobar B distribution board. It is designed to provide a neat and tidy finish to the distribution board and to allow for the installation of additional accessories. The SEA9BN4P is made of high-quality materials and is easy to install. It is a valuable tool for any electrician or technician who works with the Acti 9 Isobar B distribution board. · · · Number of ways 4 ways – 3P + N · · Busbar pitch 18 mm · · Length 286 mm · · Allows for the installation of additional accessories
Out of stock
Description
Technical Specifications Technical Specifications Distributor assembly busbars Width 264 mm Number of poles 12 Depth 83 mm Max. rated current 250 A Height 286 mm Busbar distance 18 mm Busbar thickness 2 mm Short-circuit breaking capacity (Icw) 25 kA With cover No Busbar height – mm · Technical Data Sheet – Click to Download
