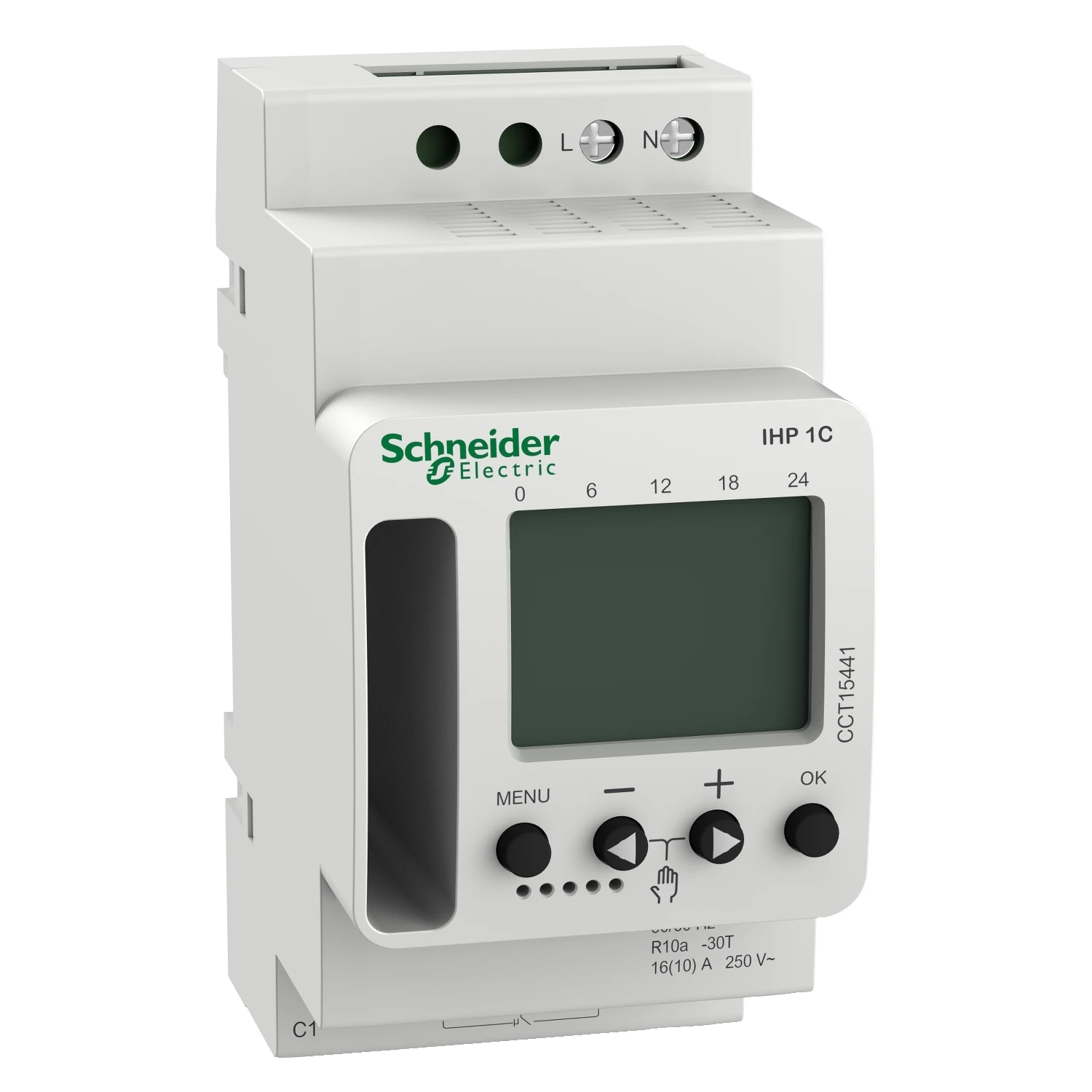

Acti9 Time Switch Programmable 24Hr 7 Day
Acti9 Time Switch Programmable 24Hr 7 Day
Acti9 Time Switch Programmable 24Hr 7 Day - Image 2
Acti9 Time Switch Programmable 24Hr 7 Day - Image 3

Acti9 Time Switch Programmable 24Hr 7 Day

£245.15 Incl. VAT

CCT15441 : Acti 9 IHP 1C w (24h/7d) programmable time switch · · · IHP digital time switch · · Width of 45mm (5 modules of 9mm) · · Automatically switches On and Off loads according to the program entered by the user on weekly level · · Swiching cycle is 7 days (weekly) · · Number of switching operations: 56

3 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CCT15441 Categories: , , Brand: Part Number: 2501266788

Description

Technical Specifications  Technical Specifications Digital time switch for distribution board Shortest switching time channel 2 – min Width 45.00 mm Accuracy per day 0.25 s Autonomy in years 10.00 Autonomy in hours 87600.00 Depth 67.00 mm Nominal switching current at 250 V AC 16.00 A Shortest switching time channel 1 1.00 min Number of memory locations 56.00 External pushbutton input Yes Potential free switch contact Yes Frequency supply voltage 50.00 – 60.00 Hz Supply voltage 230.00 – 230.00 V Height 92.60 mm Width in number of modular spacings 2.50 Number of channels 1.00 Automatic switching summer-/winter time Yes Quartz controlled Yes Text guidance in display Yes Switching preselection Yes Manual operation Yes Memory card included No Radio-controlled (DCF77) No Impulse program No Random program No Cycle program No Holiday program Yes 24 h program Yes 60 min. program Yes GPS (global positioning system) No Mains synchronous Yes Hour meter No Annual program No External programming No Weekly program Yes Radio-controlled No Astro/solar program No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191301
