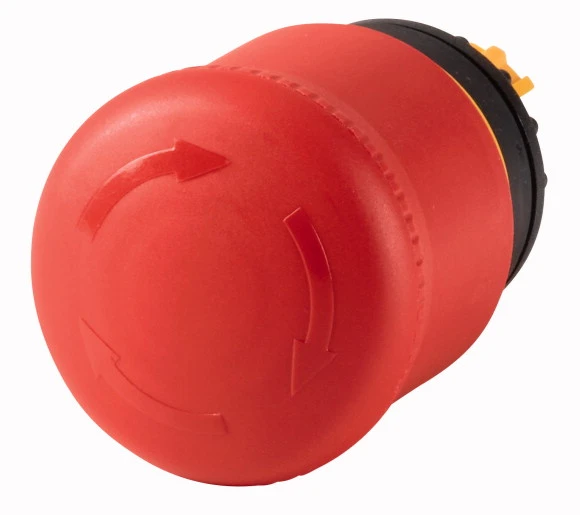

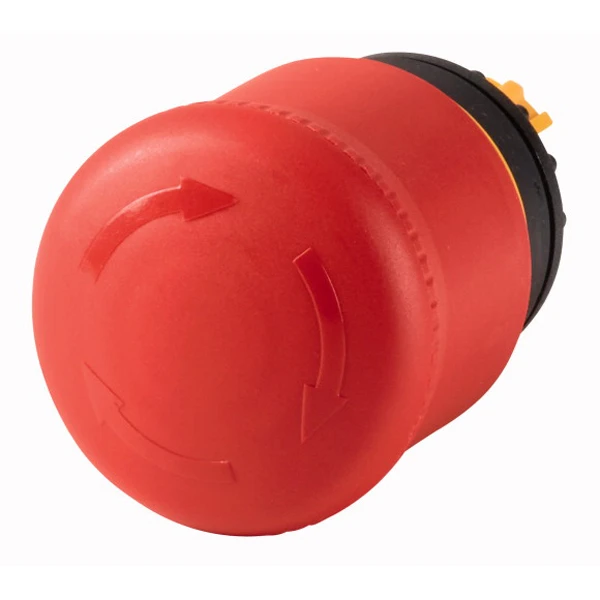

Actuator Emergency Stop Complete Unit Red Non-Illuminated
Actuator Emergency Stop Complete Unit Red Non-Illuminated
Actuator Emergency Stop Complete Unit Red Non-Illuminated - Image 2
Actuator Emergency Stop Complete Unit Red Non-Illuminated - Image 3
Actuator Emergency Stop Complete Unit Red Non-Illuminated - Image 4

Actuator Emergency Stop Complete Unit Red Non-Illuminated

£33.31 Incl. VAT

Emergency stop/emergency switching off pushbutton, Product range: RMQ-Titan, Single unit, Design: Mushroom-shaped, Diameter: 38 mm, Illumination: Non-illuminated, Turn-to-release function, Description: Tamper-proof according to ISO 13850/EN 418, Colour Mushroom head: Red, Colour Base: yellow, RAL 3000, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Front dimensions: 35, Instructions: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11, Standards: IEC/EN 60947, VDE 0660 · · · Colour: Red · · Material: Plastic · · Actuator Type: Turn-to-release · · Button Colour: Red · · Diameter: 38mm

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: M22-PVT Categories: , , Brand: Part Number: 2500167395

Description

Technical Specifications  Technical Specifications Front element for mushroom push-button Degree of protection (NEMA) 4X, 13 Construction type lens Round Degree of protection (IP rating) IP67/IP69K Unlocking method Turn-release Colour button Red Type of button High Hole diameter 22.5 mm Width opening 0 mm Height opening 0 mm With front ring No With lighting No Spring-return No Suitable for emergency stop Yes Suitable for illumination No Supply voltage lamp 0 V Diameter cap 38 mm Switching function latching Yes · Technical Data Sheet – Click to Download
