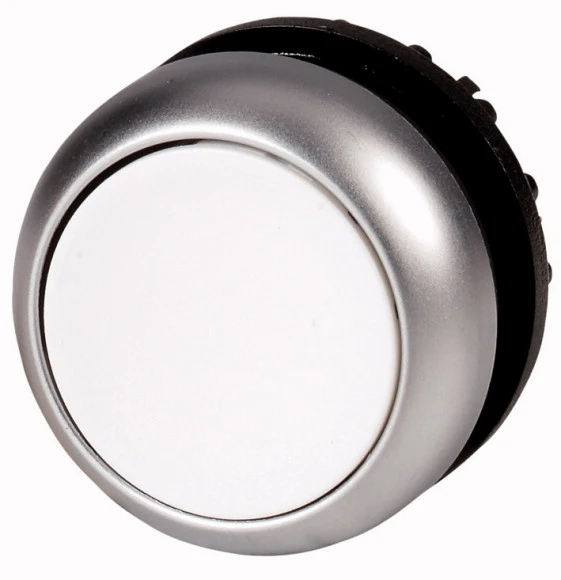

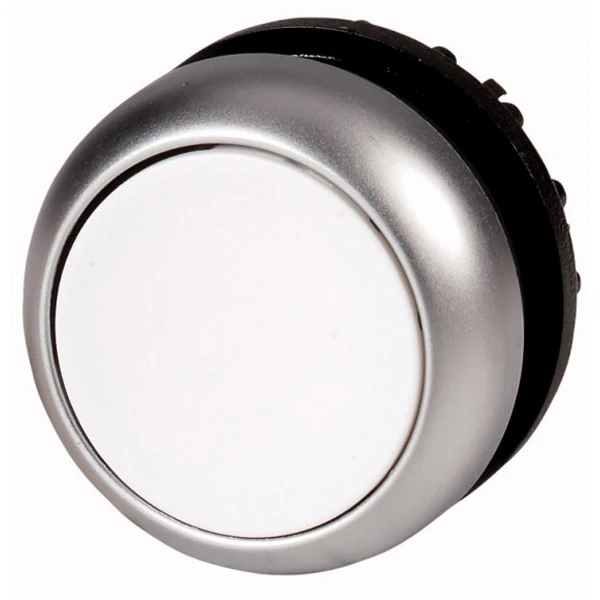

Eaton Actuator Illuminated Push Button 22mm IP67 White
Eaton Actuator Illuminated Push Button 22mm IP67 White
Eaton Actuator Illuminated Push Button 22mm IP67 White - Image 2
Eaton Actuator Illuminated Push Button 22mm IP67 White - Image 3
Eaton Actuator Illuminated Push Button 22mm IP67 White - Image 4

Eaton Actuator Illuminated Push Button 22mm IP67 White

£12.54 Incl. VAT

Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Flush, momentary, button plate: White, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660 · · · Colour: White · · Material: Plastic · · Actuator Type: Flush · · Button Colour: White · · Cutout Size: 22.5mm · · Depth: 29mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: M22-DL-W Categories: , , Brand: Product Code: 2500110479

Description

Technical Specifications  Technical Specifications Front element for push button Degree of protection (IP), front side IP67/IP69K Material front ring Plastic Degree of protection (NEMA), front side 4X Colour button White Construction type lens Round Type of button Flat Colour front ring Chrome Number of command positions 1 Height opening 0 mm Width opening 0 mm Hole diameter 22 mm Spring-return Yes Labelled No With front ring Yes With protective cover No Suitable for illumination Yes Switching function latching No · Technical Data Sheet – Click to Download
