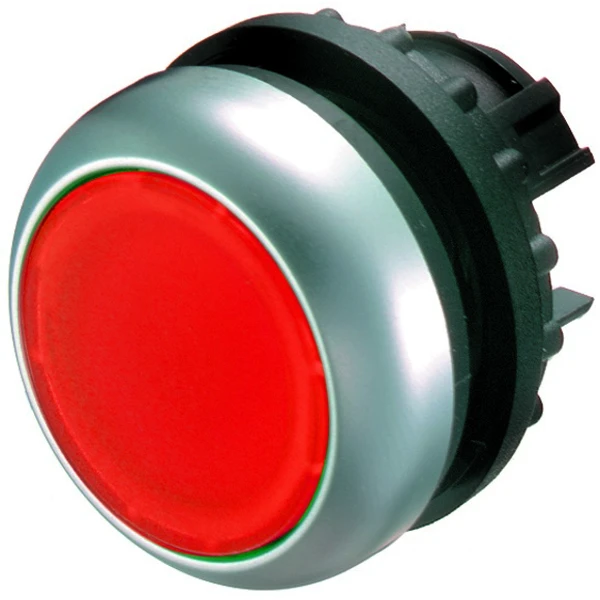

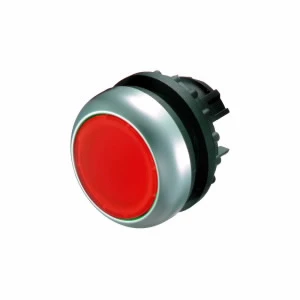

Actuator Illuminated Push Button IP67 Red
Actuator Illuminated Push Button IP67 Red
Actuator Illuminated Push Button IP67 Red - Image 2
Actuator Illuminated Push Button IP67 Red - Image 3
Actuator Illuminated Push Button IP67 Red - Image 4

Actuator Illuminated Push Button IP67 Red

£10.88 Incl. VAT

Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Flush, momentary, button plate: red, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660 · · · Colour: Red · · Material: Plastic · · Actuator Type: Flush · · Button Colour: Red · · Cutout Size: 22.5mm · · Depth: 29mm · · Compliant with EN 45545-2: 2013 (protection against fire and fumes) · · Compliant with EN 61373 (resistance to shock and vibration, category 1, class B) · · Compliant WithEN 50155 (resistance to temperature and humidity, class T1)

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: M22-DL-R Categories: , , Brand: Part Number: 2500110537

Description

Technical Specifications  Technical Specifications Front element for push button Material front ring Plastic Degree of protection (IP), front side IP67/IP69K Colour front ring Titanium Degree of protection (NEMA), front side 4X Construction type lens Round Type of button Flat Height opening 0 mm Colour button Red Number of command positions 1 Suitable for illumination Yes Switching function latching No With front ring Yes Spring-return Yes Hole diameter 22 mm Width opening 0 mm Labelled No With protective cover No · Technical Data Sheet – Click to Download
