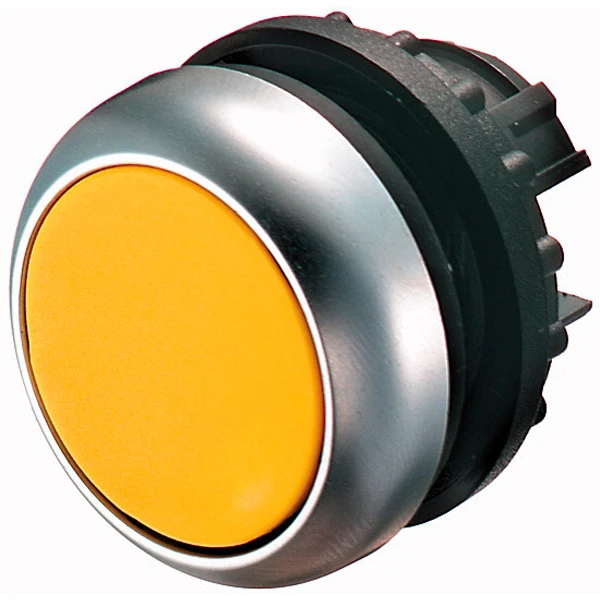

Eaton Actuator Illuminated Push-Button IP67 Yellow
Eaton Actuator Illuminated Push-Button IP67 Yellow
Eaton Actuator Illuminated Push-Button IP67 Yellow - Image 2
Eaton Actuator Illuminated Push-Button IP67 Yellow - Image 3
Eaton Actuator Illuminated Push-Button IP67 Yellow - Image 4

Eaton Actuator Illuminated Push-Button IP67 Yellow

£12.54 Incl. VAT

Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Flush, momentary, button plate: yellow, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660 · · · Colour: Yellow · · Material: Plastic · · Actuator Type: Flush · · Button Colour: Yellow · · Cutout Size: 22.5mm · · Depth: 29mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: M22-DL-Y Categories: , , , , , Brand: Product Code: 2500110539

Description

Technical Specifications  Technical Specifications Front element for push button Degree of protection (IP), front side IP67/IP69K Material front ring Plastic Colour front ring Titanium Degree of protection (NEMA), front side 4X Colour button Yellow Type of button Flat Construction type lens Round Hole diameter 22 mm Number of command positions 1 Height opening 0 mm Width opening 0 mm Suitable for illumination Yes Spring-return Yes With front ring Yes Switching function latching No Labelled No With protective cover No · Technical Data Sheet – Click to Download
