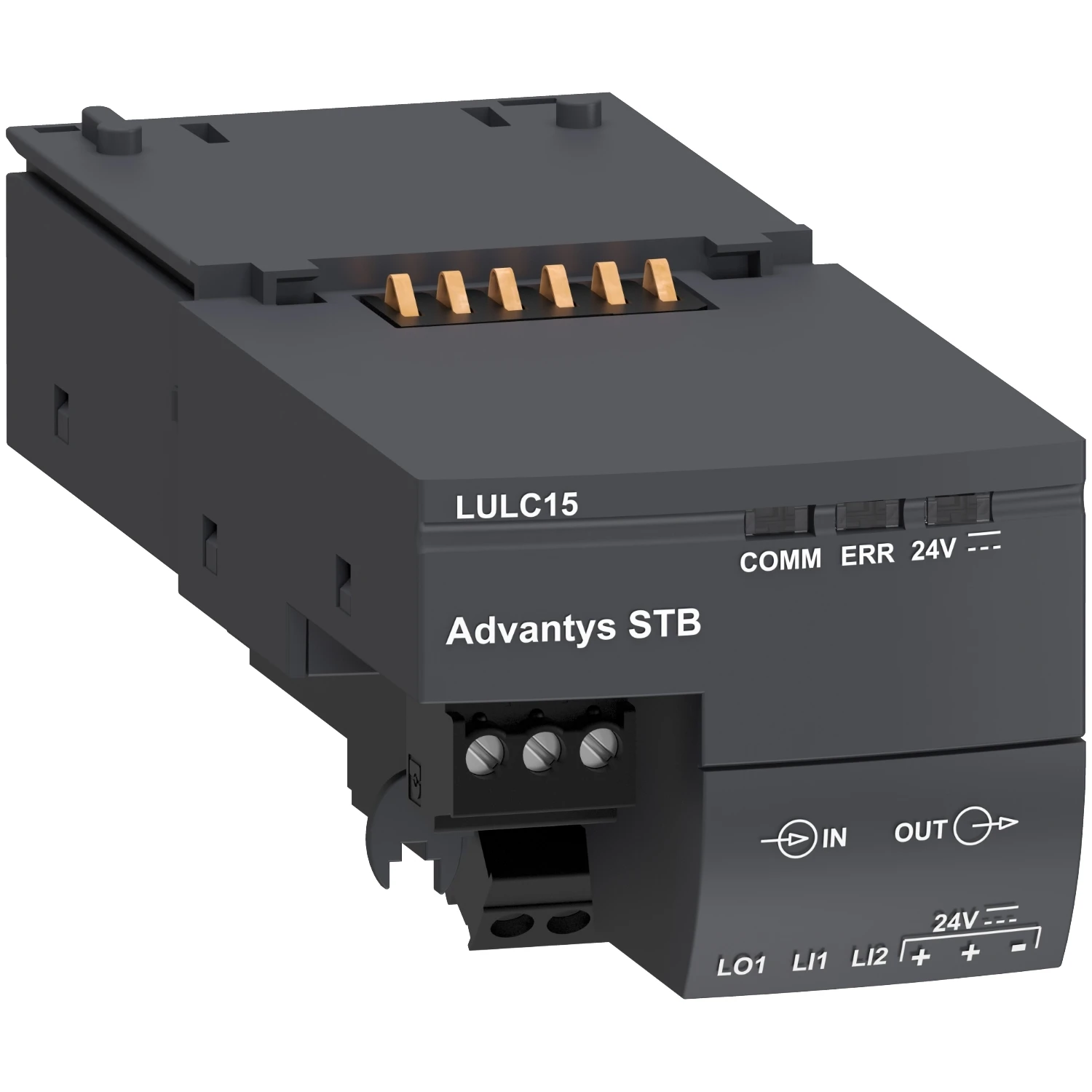

Advantys STB Communication Module for TeSys U 24 V DC
£267.38 Incl. VAT
TeSys U communication module for Advantys STB, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides 2 FireWire IEEE 1394 for connection to an Advantys STB line, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On the bottom, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11L for a LUB base or LU9MRL for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys U communication module for Advantys STB, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. · · It provides 2 FireWire IEEE 1394 for connection to an Advantys STB line, · · a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. · · On the bottom, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11L for a LUB base or LU9MRL for a LU2B base. · · It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR).
Out of stock
Description
Technical Specifications Technical Specifications Fieldbus, decentr. periphery – communication module Depth 110.00 mm Height 45.00 mm Supply voltage DC 24.00 – 24.00 V Width 45.00 mm Supply voltage AC 50 Hz – – – V Supply voltage AC 60 Hz – – – V Appendant operation agent (Ex ib) No Supporting protocol for SERCOS No Supporting protocol for PROFINET IO No Supporting protocol for EtherNet/IP No Supporting protocol for PROFINET CBA No Radio standard Bluetooth No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for DeviceNet Safety No Supporting protocol for INTERBUS-Safety No Supporting protocol for PROFIsafe No Supporting protocol for SafetyBUS p No Radio standard WLAN 802.11 No Fieldbus connection over separate bus coupler possible No Front built-in possible Yes Radio standard GPRS No Radio standard GSM No Radio standard UMTS No Rack-assembly possible No Wall mounting/direct mounting No Supporting protocol for Foundation Fieldbus No IO link master No Supporting protocol for DeviceNet No Supporting protocol for Data-Highway No Supporting protocol for SUCONET No Rail mounting possible No Appendant operation agent (Ex ia) No Supporting protocol for other bus systems No System accessory Yes With potential separation Yes Supporting protocol for ASI No Supporting protocol for TCP/IP No Supporting protocol for INTERBUS No Supporting protocol for CAN Yes Supporting protocol for KNX No Supporting protocol for MODBUS No Suitable for safety functions No Supporting protocol for PROFIBUS No Supporting protocol for LON No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188178 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188198
