Description

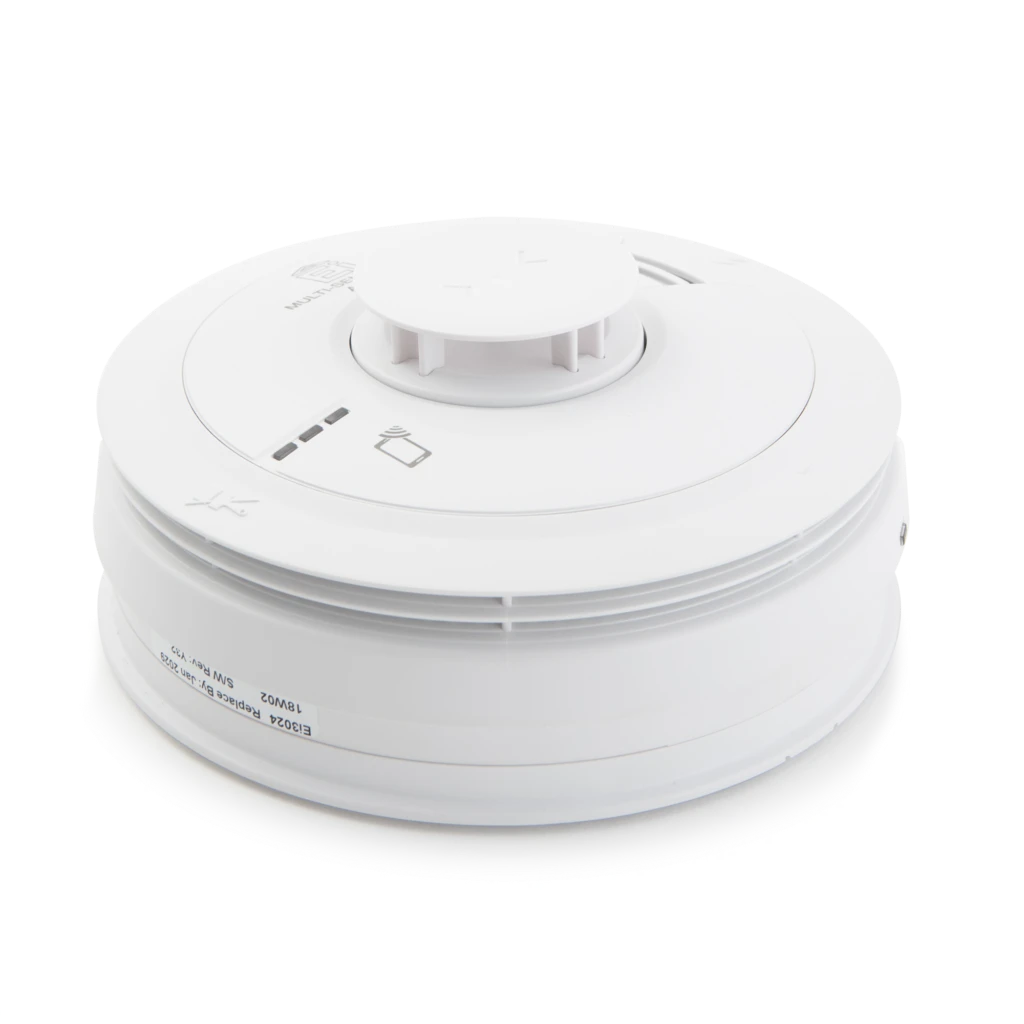

Technical Specifications  Technical Specifications Smoke/heat detector/alarm Diameter 150 mm Length 150 mm Width 150 mm Height/depth 66 mm RAL-number (similar) – Rated switch current – A Sound level 85 dB(A) Number of contacts as normally open contact – Number of contacts as normally closed contact – Number of contacts as change-over contact – Max. number networkable 12 Response temperature 58 °C Operating voltage at DC – – – V Operating voltage at AC 60 Hz – – – V Operating voltage at AC 50 Hz 230 – 240 V Supply voltage DC – – – V Supply voltage AC 60 Hz – – – V Supply voltage AC 50 Hz 230 – 240 V Supply voltage 230 – 240 V Optical signal Yes Standard networkable via radio No With base Yes Explosion-tested version No Networkable via cable Yes Standalone No Self-adhesive No Smoke switcher No Compatible with Apple HomeKit No Separate socket needed No Compatible with Amazon Alexa No Compatible with Google Assistant No IFTTT support available No With backup battery Yes Acoustic signal Yes With voltage indication No VdS accepted No With orientation lighting No With Q-label No Suitable for duct mounting No Networkable via radio optional Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1959272
