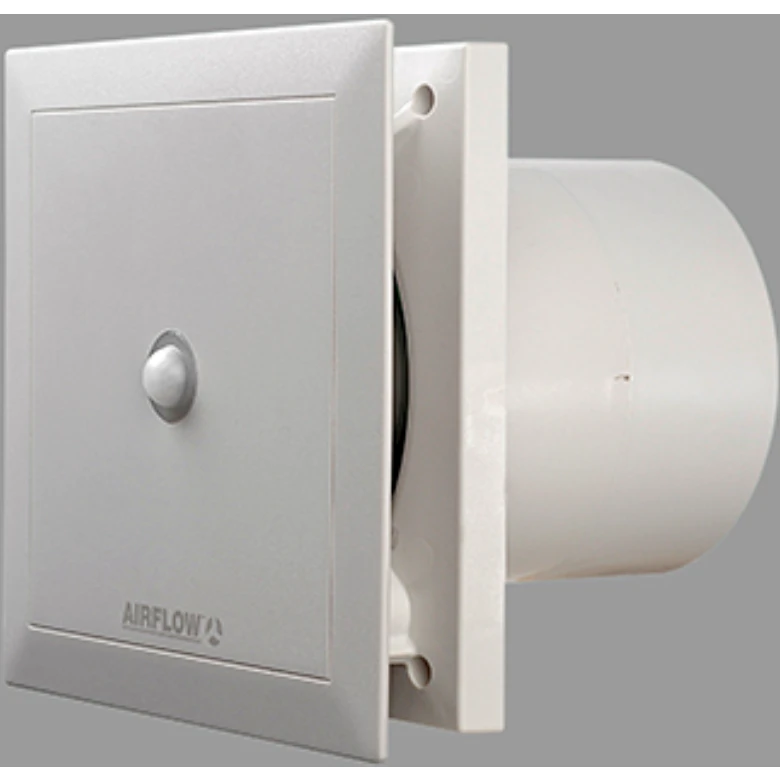

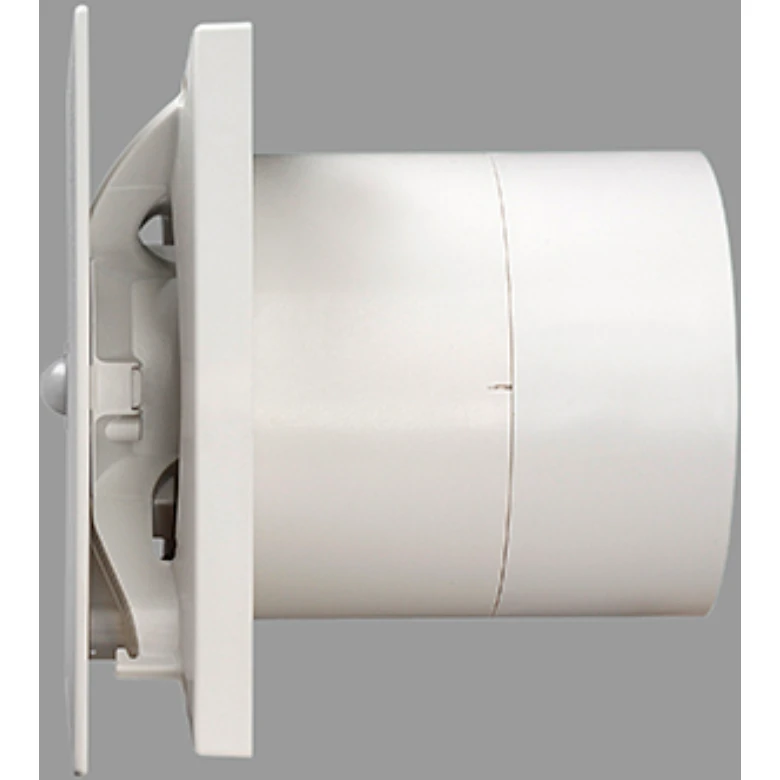

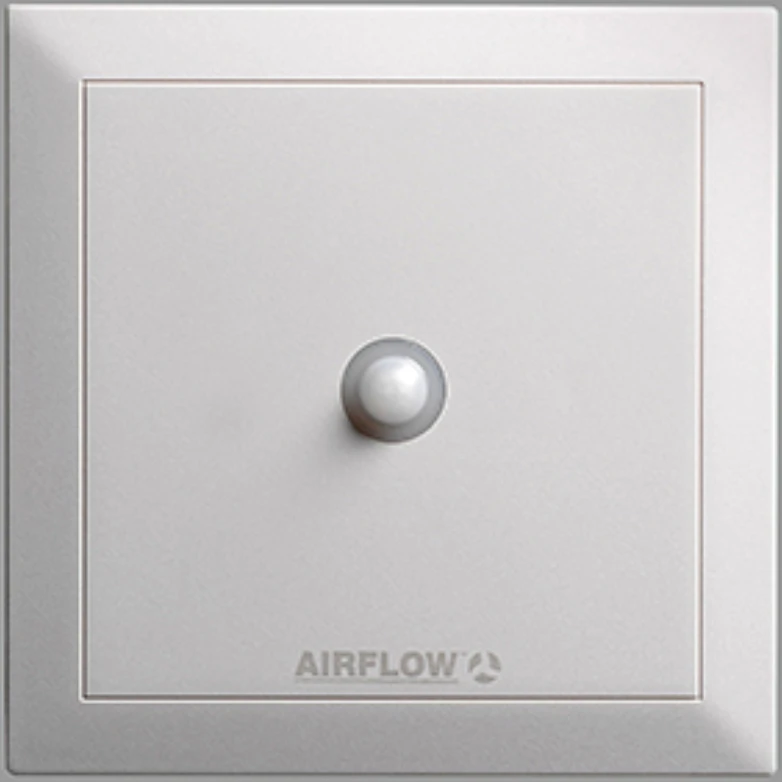

Airflow Fan Delay Start 75/90M3/Hr 100mm Motion Sensor+Timer IP45

This QuietAir Motion Sensor/Timer Fan carries the Quiet Mark Approval and is part of an extended range of elegant, discreet axial fans that are extremely quiet with various control options that activate the fan only when needed – the choices are: remote switching, timer, humidity with timer and motion sensor with timer. · This Motion Sensor/Timer model has two ways of being activated, it is activated by movement and it can also be connected to a switch for continuous operation, it can be connected to the same switch as the light circuit when a 2 pole switch is used. · Operation mode of the motion sensor; The sensor registers the heat emission of human beings within its range. If a person enters a room, the sensor activates the fan into operation. When no more movement is registered within the room, the timer run-on period of approx 15 minutes starts. The timer is reset to 15 minutes every time the sensor registers movement during the run on period. · Maximum monitoring range; Maximum distance of 5 m within an angle span of 100° horizontal and 82° vertical. The temperature difference between object and background must be at least 4°C. Lowest object speed is 0.5 to 1.5 m/s. The effective range depends on the temperature difference and speed of movement. · When installing this fan you need to select which of the two speeds you want the motion sensor to operate at. More detail is available on the wiring instructions included in the box. · · · Extract Performance: Two Speed Axial Extractor Fan Low Speed 21litres a Second High Speed 25litres a Second · · Fan Meets Building Regulations Installed Performance On Both Speeds. Noise Level 25db(A) on Low Speed. · · IP Rating: IP45 This Means It Can Be Used In Zone 1 of a Ensuite/Bathroom as Long as Current Wiring Regulations are Followed · · Three Year Warranty. Very Low Energy Consumption 5W on low speed. Long Life Ball Bearing Motors · · Location: This Fan Can Be Postioned In the Ceiling or The Wall, Ideal Location Furthest From Where The Replacement Air Enters The Room · · Speed 1 75metres cube hour/21 ltrs Speed 2 90 metres cube hour 25ltrs a second;Sound Pressure db(A)@3m 25/30;Energy consumption 5/9 watts;duct diameter 100mm;Voltage230v/1ph/50-60Hz;IP45;Max ambient temp 40C;Dimensions (HXWXD) 147x147x38
