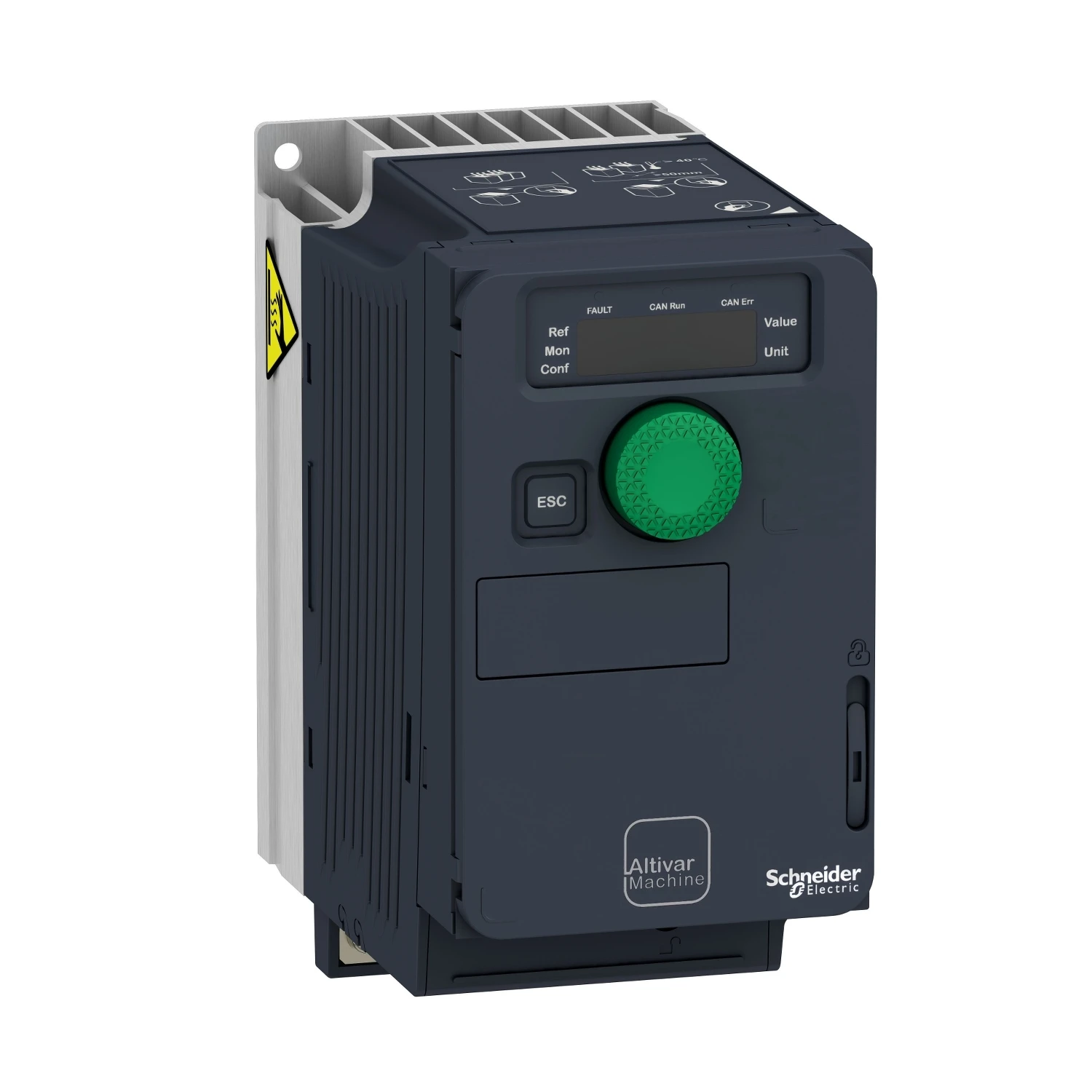

Altivar 1 Phase 0.75kW Variable Speed Drive 200 – 240V Compact
£423.48 Incl. VAT
Schneider 1 Phase compact synchronous/asynchronous motors variable speed drive built specifically for complex machines. This starter is assembled with a heat sink included as well as an integrated bypass function. The display on this soft starter features 1 green LED (signalling CANopen run) and 2 red LEDs (1 signalling CANopen error, 1 signalling drive fault). · · · This Altivar 320 variable speed drive can feed single-phase synchronous and asynchronous motors. · · Its compact form factor allows vertical stacking of drives inside machine frames. · · It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. · · Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. · · It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. · · Vibration resistance: 1gn · · Shock resistance: 15gn · · Supply frequency: 50 – 60Hz · · Ambient operating temperature: -10°C to 50°C · · IP20 Degree of protection
Out of stock
Description
Technical Specifications Technical Specifications Frequency converter =< 1 kV Height 143.00 mm Width 72.00 mm Depth 138.00 mm Max. output at linear load at rated output voltage 0.75 kW Max. output voltage 240.00 V Relative symmetric net voltage tolerance 10.00 % Max. output at quadratic load at rated output voltage 0.75 kW Nominal output current I2N 4.80 A Number of HW-interfaces PROFINET 0.00 Number of HW-interfaces RS-422 0.00 Number of HW-interfaces USB 0.00 Number of HW-interfaces serial TTY 0.00 Number of HW-interfaces RS-232 0.00 Number of analogue inputs 3.00 Number of analogue outputs 1.00 Max. output frequency 599.00 Hz Relative symmetric net frequency tolerance 5.00 % Number of HW-interfaces parallel 0.00 Number of HW-interfaces RS-485 1.00 Number of HW-interfaces other 1.00 Number of digital outputs 1.00 Number of digital inputs 6.00 Number of HW-interfaces industrial Ethernet 0.00 Mains voltage 200.00 – 240.00 V With control unit Yes Supporting protocol for INTERBUS No Supporting protocol for PROFIBUS Yes Supporting protocol for CAN Yes Supporting protocol for ASI No Supporting protocol for Data-Highway No Supporting protocol for LON No Supporting protocol for TCP/IP Yes Supporting protocol for KNX No Supporting protocol for other bus systems Yes Supporting protocol for DeviceNet Yes With optical interface No Supporting protocol for MODBUS Yes Supporting protocol for SERCOS No Supporting protocol for SUCONET No Supporting protocol for SafetyBUS p No Integrated breaking resistance Yes Application in industrial area permitted Yes Supporting protocol for PROFIsafe No Supporting protocol for PROFINET IO Yes Supporting protocol for EtherNet/IP Yes Supporting protocol for BACnet No 4-quadrant operation possible Yes Application in domestic- and commercial area permitted No With PC connection Yes Supporting protocol for INTERBUS-Safety No Supporting protocol for DeviceNet Safety No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for Foundation Fieldbus No Supporting protocol for PROFINET CBA No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188811 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2208324
