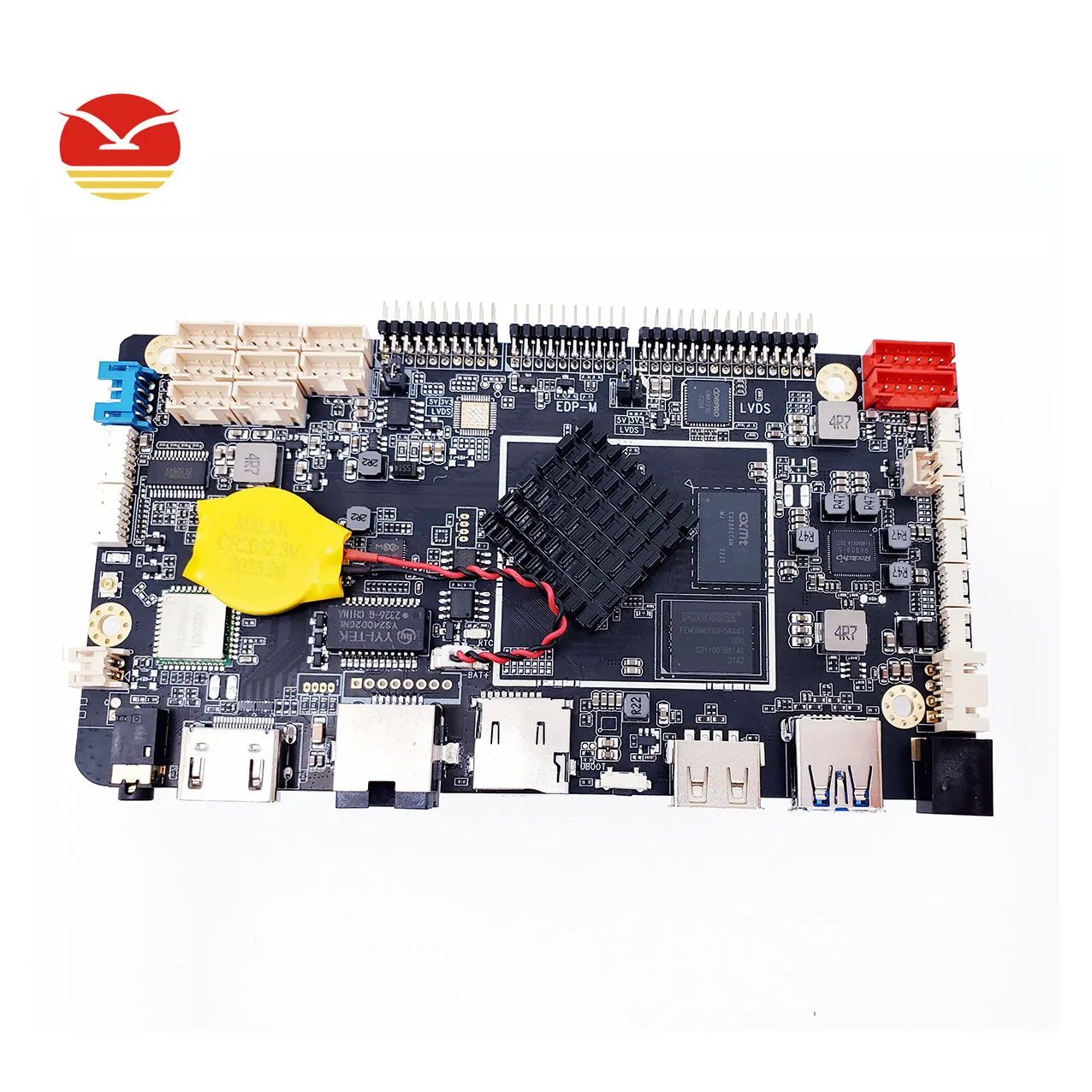

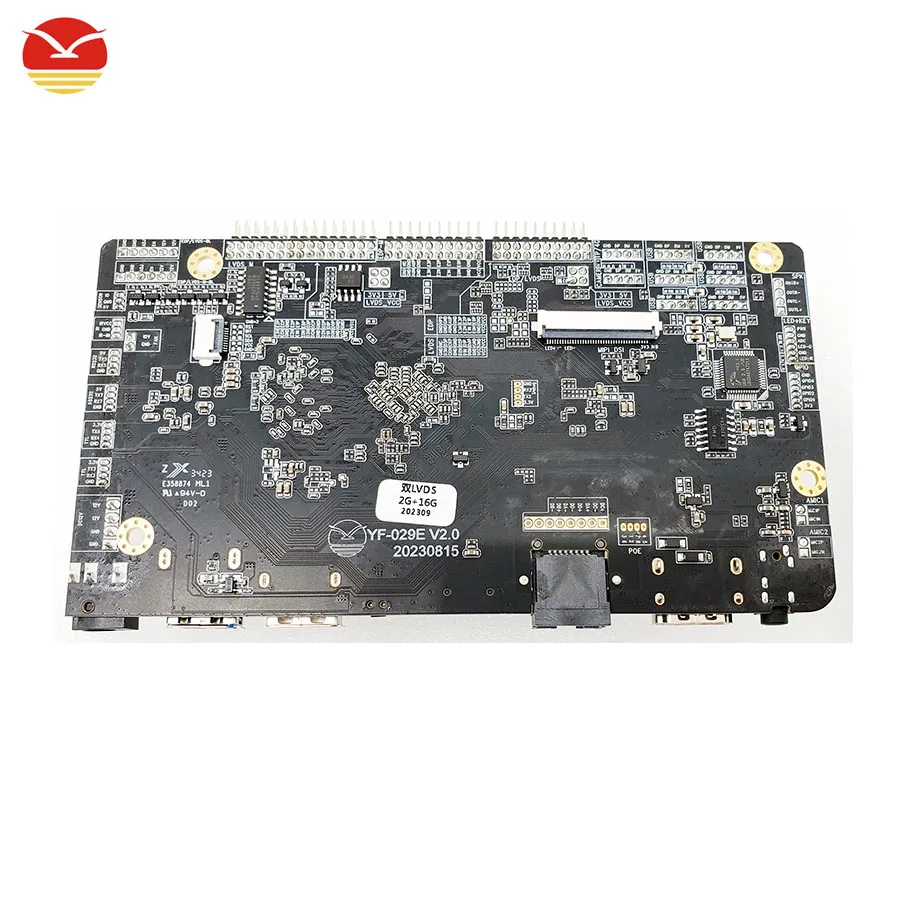

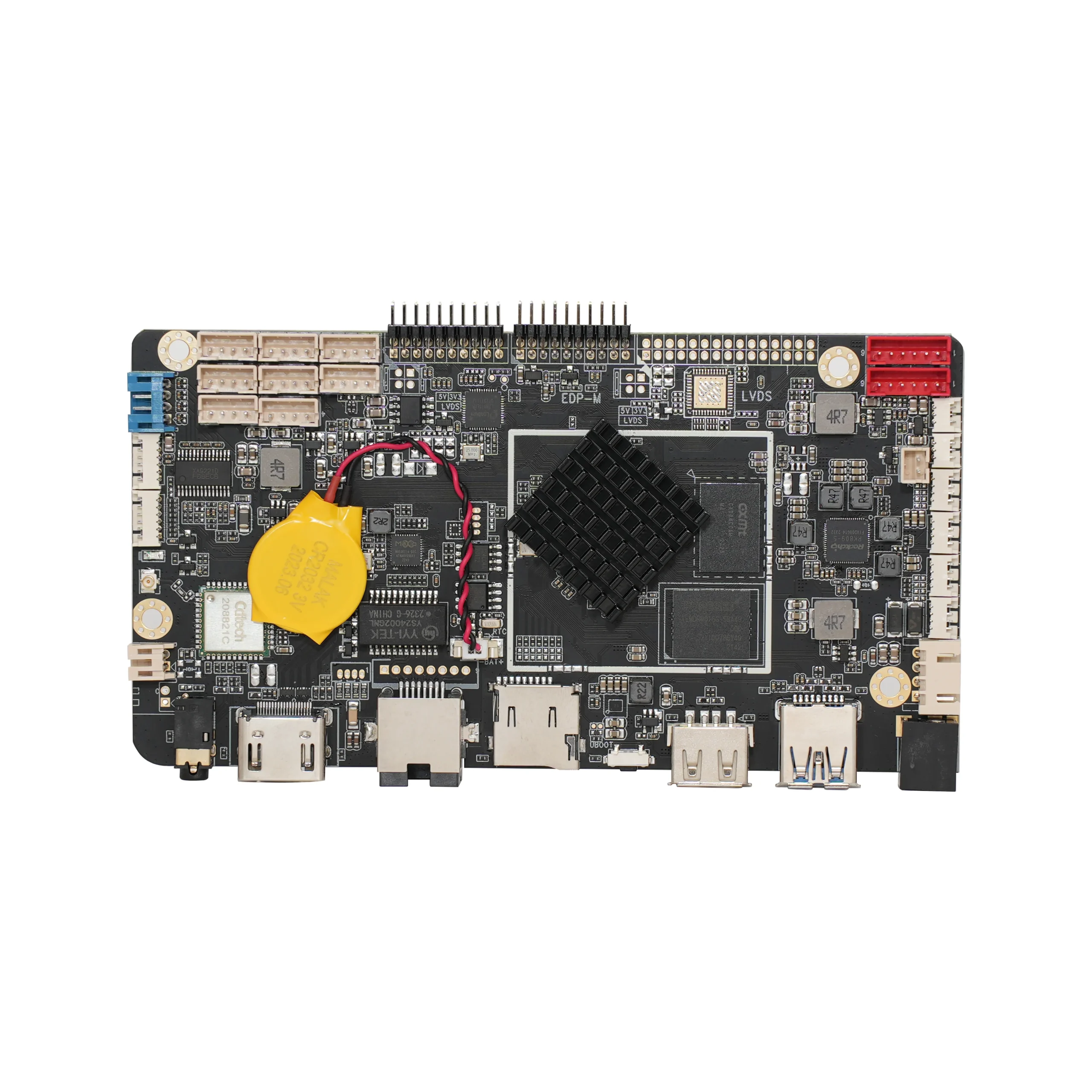

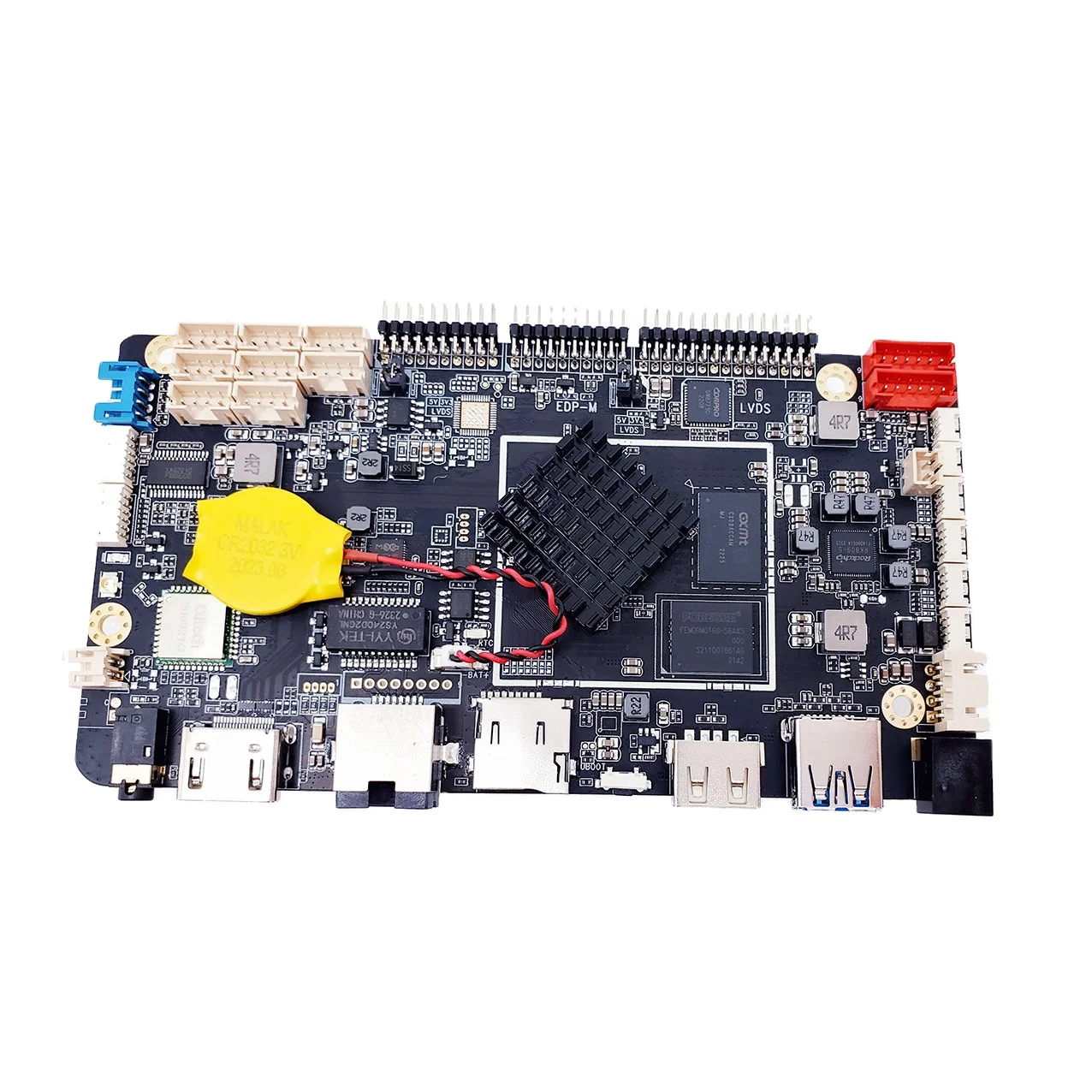

Android Motherboard for Dual Double-sided Screen Monitor Smart Scale with Quad-core RK3568 CPU Dual EDP LVDS MIPI output

Description

YF is the Original Designer and Manufacturer Work with us, your business is safe, your money is safe Contact US: Whatsapp /Wechat /Tel: +8618682001573 Email: mariah@ yf-meta.com Skype: mariageng@ 126.com Item No.: YF-029E Dual lvds or Dual eDP Product Name: All-in-one Android OS 11 Linux Debian 10 RJ45 Blue-tooth RS232 TTL IIC-Touch panel Rockchip RK3568 Android Embedded Motherboard Mainboard Driver Board Controller Board PCBA for Digital-signage Smart Home Advertising Advertisment Machine Self-service Terminal Machine. Small Size embedded Android OS 11 13 Linux Debian 10 2GB+16GB Rockchip RK3568 Android Inudstial developement Motherboard Android Motherboard Main Interface * LVDS output x 2 (up to 1920*1080) * eDP output x 1 (up to 1920*1080) * Mipi output x 1 (up to 1920*1080) * HDMI output x 1 (up to 3840*2160) * USB3.0 x 1 ( for data input and output) * USB OTG x 1 (image updating through OTG, ) * USB2.0 built-in x 4 way * TF card Slot * TTLYS3 (for TTL) * TTLYS4 (for TTL) * TTLSY7 (for TTL, Used by RD) * GPIO x 4 * I2C (for I2C TP) * POE function (optional) * RJ45 (up to 1000M) * Power Jack (12V DC power supply) * Built-in power interface * Backlight control interface * Body Sensor interface Product Overview The YF-029E board uses Rockchip RK3568 high-performance, low-power quad-core application processor, equipped with Android11.0 system, with a main frequency of up to 2.0 GHz. The embedded 3D GPU makes RK3568 fully compatible with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1. The special 2D hardware engine will maximize display performance and provide very smooth operation. The built-in NPU supports 1.0T computing power, supports almost all formats of H.264 decoder 4K@60fps, H.265 decoder 4K@60fps, and also supports H.264/H.265 encoder 1080p@60fps, high-quality JPEG encoder /decoder. Integrate multi-channel LVDS eDP MIPI, 1000M Ethernet, HDMI IN/OUT, WIFI, and BT power amplifier into one, support decoding of most popular video and picture formats, dual 2way x eDP/ MIPI support 2K level Output, compatible with driving various TFT LCD displays screen, simplifying the overall system design. Key Features – High integration level: Integrated USB/ LVDS/ eDP/Gigabit Ethernet/ WIFI/ BT/ HDMI-out/HDMI-in /TF card expansion/microphone and other functions simplify the overall machine design and make the overall machine design more beautiful. – High definition: Supports 1080P/H.265 (4K2K) video decoding and various LVDS/eDP/MIPI Signal LCD displays. – Support HDMI-in and HDMI-out – Comes with built-in power amplifier: Supports dual-channel 8R/2W power amplifier. – Rich interfaces: Supports USB (USB3.0x1way, and USB2.0x9way)/TTL x 2way/ RS232 x 2way/ GPIO/ ADC interface expansion, which can meet the mainstream peripherals on the market. – Full-featured: Supports horizontal and vertical screen playback, video split screen, rolling subtitles, timer switch, USB data import and other functions. – Convenient management: Humanized playlist creation software facilitates advertising playback management and control. Playback log makes it easy to understand the playback status. CPU Rockchip RK3568 UP to 2GHz GPU Mali-G52-2EE High perormance GPU NPU NPU support up to 1.0T RAM LPDDR4X/LPDDR4 2GB standard, optional 4GB, 8GB,16GB ROM EMMC 16G standard, optional 32GB 64GB, up to 128GB Decoding Resolution Support 1080P/H.265(4K2K) O.S. Android11.0 Play Mode Supports multiple playback modes such as loop, timing, and insert playback Network Gigabit Ethernet, supporting WiFi /BT, wireless peripheral expansion USB2.0 interface 4 way USB HOST USB 3.0 interface Standard USB 3.0 x 1way, USB 3.0 OTG x 1way Serial Ports TTL x 3way,Debug x 1way,RS232 x 1way Ethernet RJ45 x 1way,10M/1000M, Adaptive Ethernet HDMI Output UP to 3840*2160 EDP Output EDP x 1way (up to 1920*1080) LVDS Output LVDS x1way (up to 1920*1080) MIPI Output MIPI x 1way (up to 1920*1080) Audio Output Left and right channel Output 8R/2W speakers RTC Support RTC (Real Time Clock) Hardware-Watch-dog Support Timing-on/off Support Dual Panel different display Support O.S Updating Updating through TF card or Computer Special Function Updating Resolution firmware through USB Recommended by seller Rockchip RK3566 Solution Android motherboard board for 7 inch MIPI LCD Display w/ touchscreen QR Code scanner NFC card reader.
