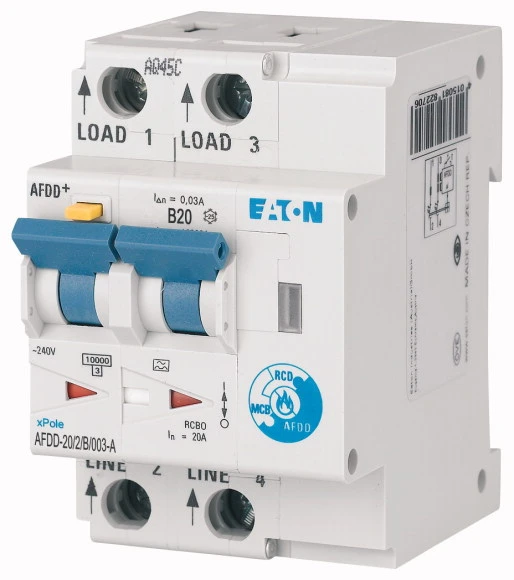

Arc Fault Detection Device Type A Double Pole B Curve 20A 30Ma 10Ka
Arc Fault Detection Device Type A Double Pole B Curve 20A 30Ma 10Ka
Arc Fault Detection Device Type A Double Pole B Curve 20A 30Ma 10Ka - Image 2
Arc Fault Detection Device Type A Double Pole B Curve 20A 30Ma 10Ka - Image 3
Arc Fault Detection Device Type A Double Pole B Curve 20A 30Ma 10Ka - Image 4

Arc Fault Detection Device Type A Double Pole B Curve 20A 30Ma 10Ka

£281.05 Incl. VAT

High-quality arc fault detection device (AFDD) in combination with a residual current circuit-breaker/miniature circuit-breaker (RCBO), independent of mains voltage, contact position display red-green, terminal rear plug protection, tri-stable slide catch—enables removal from an existing closure assembly, comprehensive accessory product range can be retrofitted, wide range of rated fault currents, rated operational currents up to 40 A, trip types B, Cc, D, rated switching capacity 10 kA, suitable for use in the free (on-site power and outdoor distribution board) to -25 °C · · · Combined AFDD/RCB/MCB · · 10kA current rating · · LED fault identification · · 3 modules width · · Din rail mounting · · IEC/EN 62606

26 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 187219 Categories: , , Brand: Part Number: 2501147930

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO with auxiliary device Leakage current type A Tripping characteristic (type/curve) B Control voltage type auxiliary equipment AC Additional equipment attached at delivery Arc fault detection device (AFDD) Degree of protection (IP rating) IP20 Rated voltage auxiliary device 230 V Current limiting class 3 Rated current 20 A Width in number of modular spacings 3 Pollution degree 2 Rated switch current auxiliary device 0 A Rated short-circuit breaking capacity IEC 60947-2 0 kA Over voltage category 3 Rated short-circuit breaking capacity according to EN 61009 10 kA Frequency 50 Hz Number of poles 2 Rated voltage 230 V Rated fault current 0.03 A Recess depth 67 mm Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
