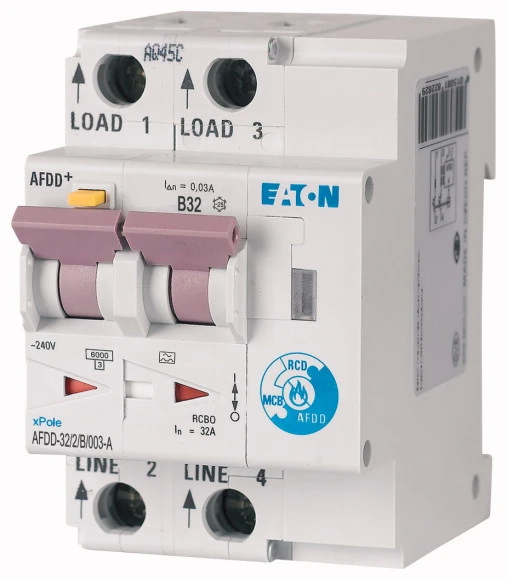

Arc Fault Detection Device Type A Double Pole B Curve 32A 30Ma 6Ka
£281.05 Incl. VAT
High-quality arc fault detection device (AFDD) in combination with a residual current circuit-breaker/miniature circuit-breaker (RCBO), independent of mains voltage, contact position display red-green, terminal rear plug protection, tri-stable slide catch—enables removal from an existing closure assembly, comprehensive accessory product range can be retrofitted, wide range of rated fault currents, rated operational currents up to 40 A, trip types B, Cc, D, rated switching capacity 10 kA, suitable for use in the free (on-site power and outdoor distribution board) to -25 °C · · · Combined AFDD/RCB/MCB · · 10kA current rating · · LED fault identification · · 3 modules width · · Din rail mounting · · IEC/EN 62606
13 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO with auxiliary device Leakage current type A Tripping characteristic (type/curve) B Control voltage type auxiliary equipment AC Additional equipment attached at delivery Arc fault detection device (AFDD) Degree of protection (IP rating) IP20 Rated current 32 A Recess depth 67 mm Number of poles 2 Current limiting class 3 Over voltage category 3 Rated short-circuit breaking capacity IEC 60947-2 0 kA Width in number of modular spacings 3 Rated fault current 0.03 A Pollution degree 2 Rated voltage 230 V Frequency 50 Hz Rated switch current auxiliary device 0 A Rated voltage auxiliary device 230 V Rated short-circuit breaking capacity according to EN 61009 6 kA Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
