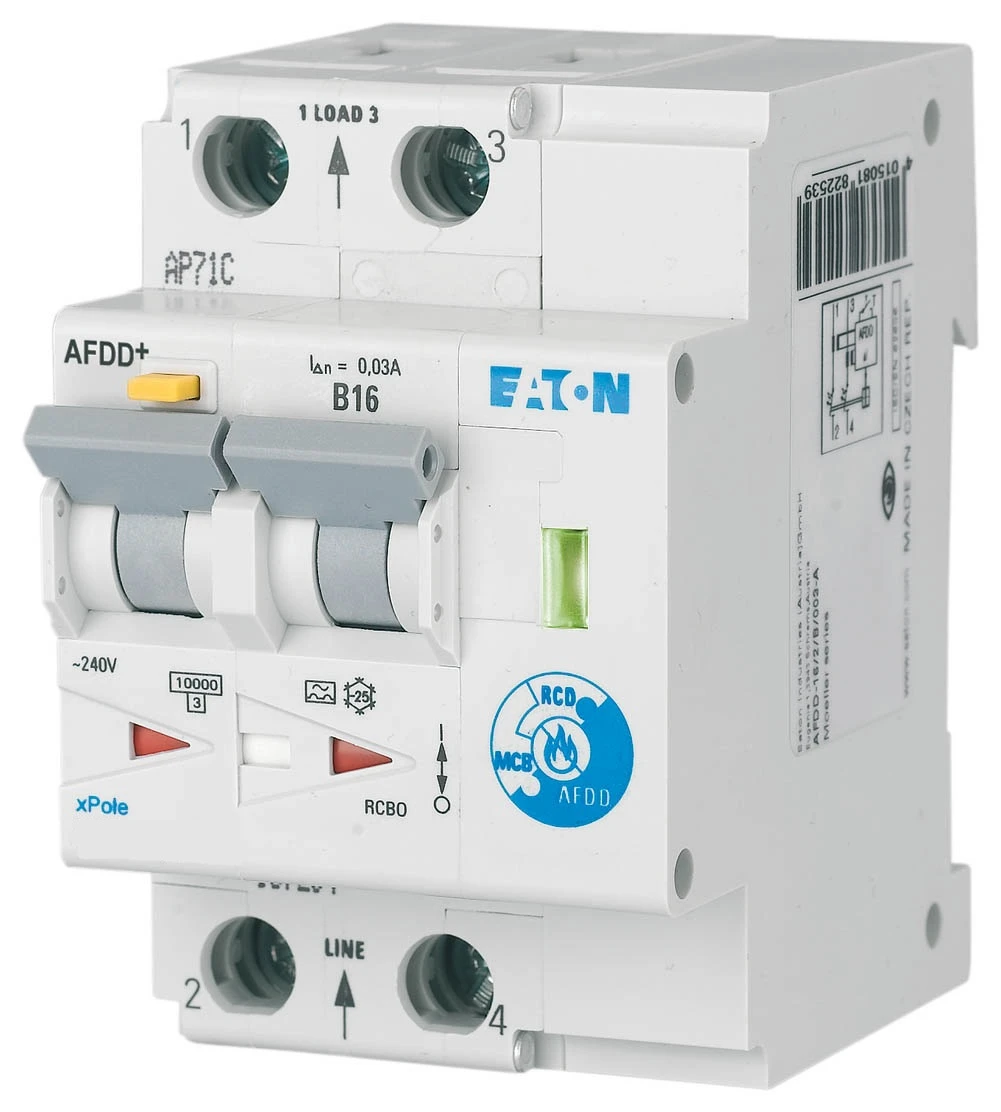

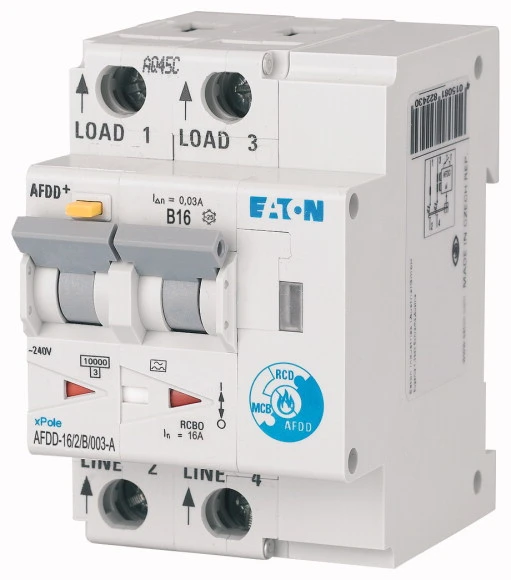

Arc Fault Detection Device Type A DP B Curve 16A 30Ma 10Ka
£281.05 Incl. VAT
High-quality arc fault detection device (AFDD) in combination with a residual current circuit-breaker/miniature circuit-breaker (RCBO), independent of mains voltage, contact position display red-green, terminal rear plug protection, tri-stable slide catch—enables removal from an existing closure assembly, comprehensive accessory product range can be retrofitted, wide range of rated fault currents, rated operational currents up to 40 A, trip types B, Cc, D, rated switching capacity 10 kA, suitable for use in the free (on-site power and outdoor distribution board) to -25 °C · · · Combined AFDD/RCB/MCB · · 10kA current rating · · LED fault identification · · 3 modules width · · Din rail mounting · · IEC/EN 62606
7 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO with auxiliary device Leakage current type A Tripping characteristic (type/curve) B Additional equipment attached at delivery Arc fault detection device (AFDD) Control voltage type auxiliary equipment AC Degree of protection (IP rating) IP20 Rated switch current auxiliary device 0 A Current limiting class 3 Width in number of modular spacings 3 Rated fault current 0.03 A Pollution degree 2 Over voltage category 3 Rated short-circuit breaking capacity IEC 60947-2 0 kA Rated short-circuit breaking capacity according to EN 61009 10 kA Rated voltage auxiliary device 230 V Rated current 16 A Rated voltage 230 V Number of poles 2 Frequency 50 Hz Recess depth 67 mm Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
