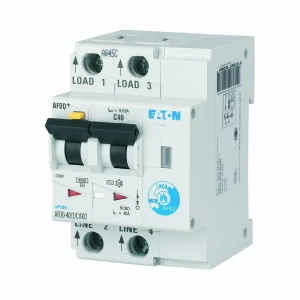

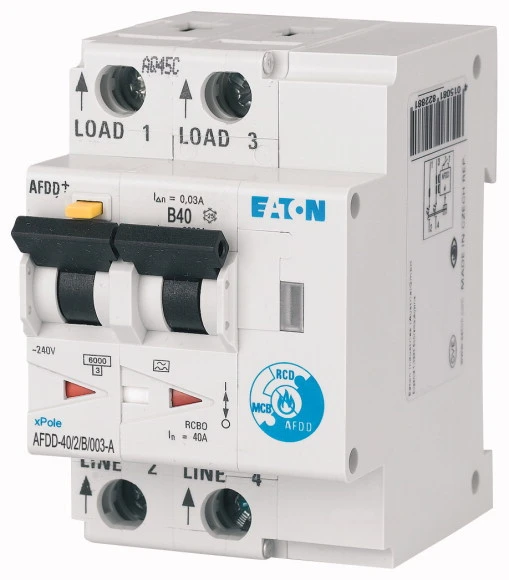

Arc Fault Detection Device Type A DP B Curve 40A 30Ma 6Ka
£292.76 Incl. VAT
High-quality arc fault detection device (AFDD) in combination with a residual current circuit-breaker/miniature circuit-breaker (RCBO), independent of mains voltage, contact position display red-green, terminal rear plug protection, tri-stable slide catch—enables removal from an existing closure assembly, comprehensive accessory product range can be retrofitted, wide range of rated fault currents, rated operational currents up to 40 A, trip types B, Cc, D, rated switching capacity 10 kA, suitable for use in the free (on-site power and outdoor distribution board) to -25 °C · · · Combined AFDD/RCB/MCB · · 10kA current rating · · LED fault identification · · 3 modules width · · Din rail mounting · · IEC/EN 62606
3 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO with auxiliary device Leakage current type A Tripping characteristic (type/curve) B Control voltage type auxiliary equipment AC Additional equipment attached at delivery Arc fault detection device (AFDD) Degree of protection (IP rating) IP20 Frequency 50 Hz Rated current 40 A Over voltage category 3 Rated voltage 230 V Number of poles 2 Rated switch current auxiliary device 0 A Rated short-circuit breaking capacity IEC 60947-2 0 kA Rated short-circuit breaking capacity according to EN 61009 6 kA Rated voltage auxiliary device 230 V Recess depth 67 mm Current limiting class 3 Pollution degree 2 Rated fault current 0.03 A Width in number of modular spacings 3 Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
