Arc Fault Detection RCBO Easy9 Vigiarc 1 Pole + Neutral 10A B Curve 30Ma A-Si Type 6000A

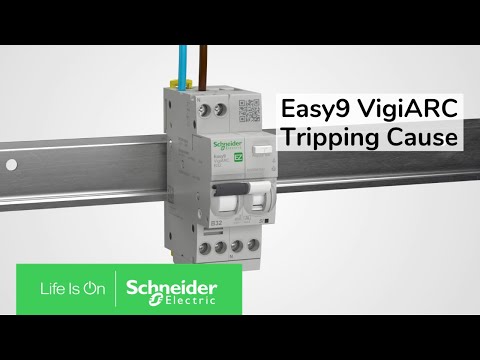

This Easy9 VigiARC product is an arc fault detection RCBO. It is a 1P+N with 1 protected pole, 10A In rated current and B tripping curve. The earth-leakage protection class is A-SI (Super Immunised) type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated breaking capacity is up to 6000A at 230VAC with operating frequency of 50Hz conforming to IEC 61009-2-1 standard. The Icu rated breaking capacity is up to 10kA at 230VAC with operating frequency of 50Hz conforming to EN/IEC 60947-2 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. It has 2 unique VisiTrip indicators reduce intervention time by showing the faulty circuit and identifying quickly the type of default. It is visible on the toggle of the device in the front face. This product also comes with LED for arc fault diagnostic. It is intended for new or renovated installation in residential and small commercial. The electrical endurance is up to 20000 cycles at 230VAC with operating frequency of 50Hz and the mechanical endurance is up to 20000 cycles. This product includes maintenance indicators and records the date and time of each electrical events. This RCBO comes with padlocking and compatible with comb busbar and distribution block. It has a tunnel type terminal connection at top and bottom. The connection allows rigid copper cables. The cable cross section capacity is from 1mm² to 16mm². It has a tunnel type terminal connection at top and bottom. The connection allows flexible copper cables. The cable cross section capacity is from 1mm² to 10mm². The rated operational voltage (Ue) is up to 230VAC with operating frequency of 50Hz. The rated insulation voltage (Ui) is up to 250VAC between phase and neutral with operating frequency of 50Hz. The rated impulse withstand voltage (Uimp) is up to 4kV. The rated service breaking capacity (Ics) is up to 6000A at 230VAC with operating frequency of 50Hz conforming to IEC 61009-2-1 standard. The rated service breaking capacity (Ics) is up to 7.5kA at 230VAC with operating frequency of 50Hz conforming to IEC 60947-2 standard. The Idm rated breaking and making capacity is up to 3000A at 230VAC with operating frequency of 50Hz conforming to IEC 61009-2-1 standard. The dimensions are (W) 36mm x (H) 91mm x (D) 73mm. The product colour is white (RAL 9003). The product weight is 220g. The width in 9mm pitches is 4. The pollution degree is 2 conforming to EN/IEC 62606 standard. The relative humidity is 95% at 55°C. The limitation class is 3 and the overvoltage category is 3. The level of tropicalisation is severity B with duration for 28 days conforming to IEC 60068-2-30 standard. The tightening torque of connection is 2N.m for PZ1 screwdriver type. This product can be mounted on DIN rail for modular installation. The IP degree of protection is IP20 conforming to IEC 60529 standard. The operating temperature is from -25°C to +40°C. The storage temperature is from -40°C to +80°C. This product complies with EN/IEC 62606, EN/IEC 61009-1, EN/IEC 60947-2 and EN/IEC 61009-2-1 standards. It also has a VDE and OVE quality labels. · · · Poles description 1P + N · · Curve code B · · Neutral position Left · · Network type AC
