Arc Fault Detection Switch Acti9 Iarc 1 Pole + Neutral 40 A

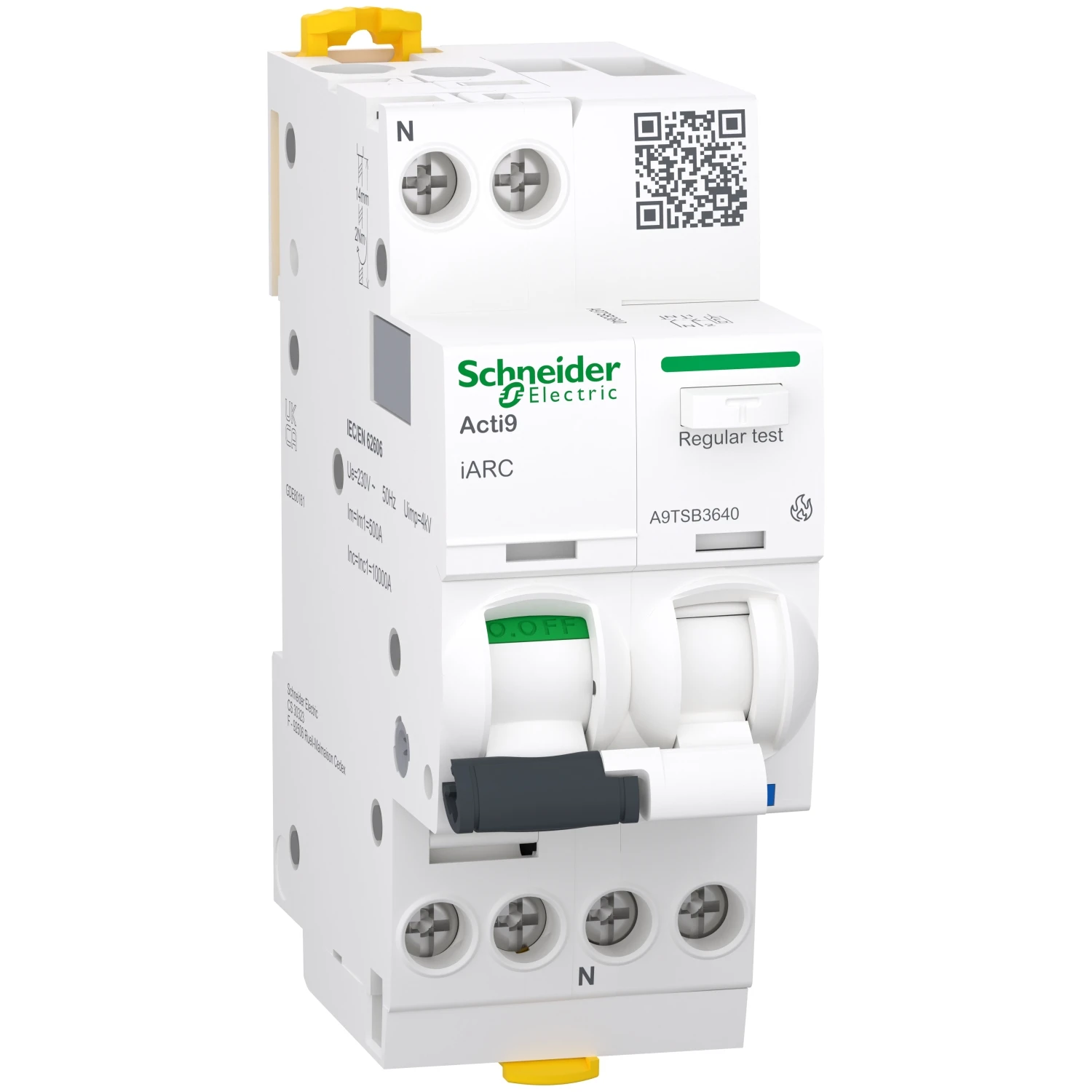

This Acti9 iARC product is an arc fault detection switch. It is a 1P+N with 1 protected pole and 40A In rated current. The rated breaking and making capacity (Im) is 500A and one pole making and breaking capacity (Im1) is 500A. The rated conditional short-circuit current (Inc) is 10000A and the (Inc1) for one pole is 10000A conforming to EN/IEC 62606. Its 2 unique VisiTrip indicators reduce intervention time by showing the faulty circuit and identifying quickly the type of default. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 250VAC. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 2. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 91mm x (D)73mm. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. This product is compliant with EN/IEC 62606 standard. · · · Poles description 1P + N · · Neutral position Left · · Network type AC · · Network frequency 50 Hz
