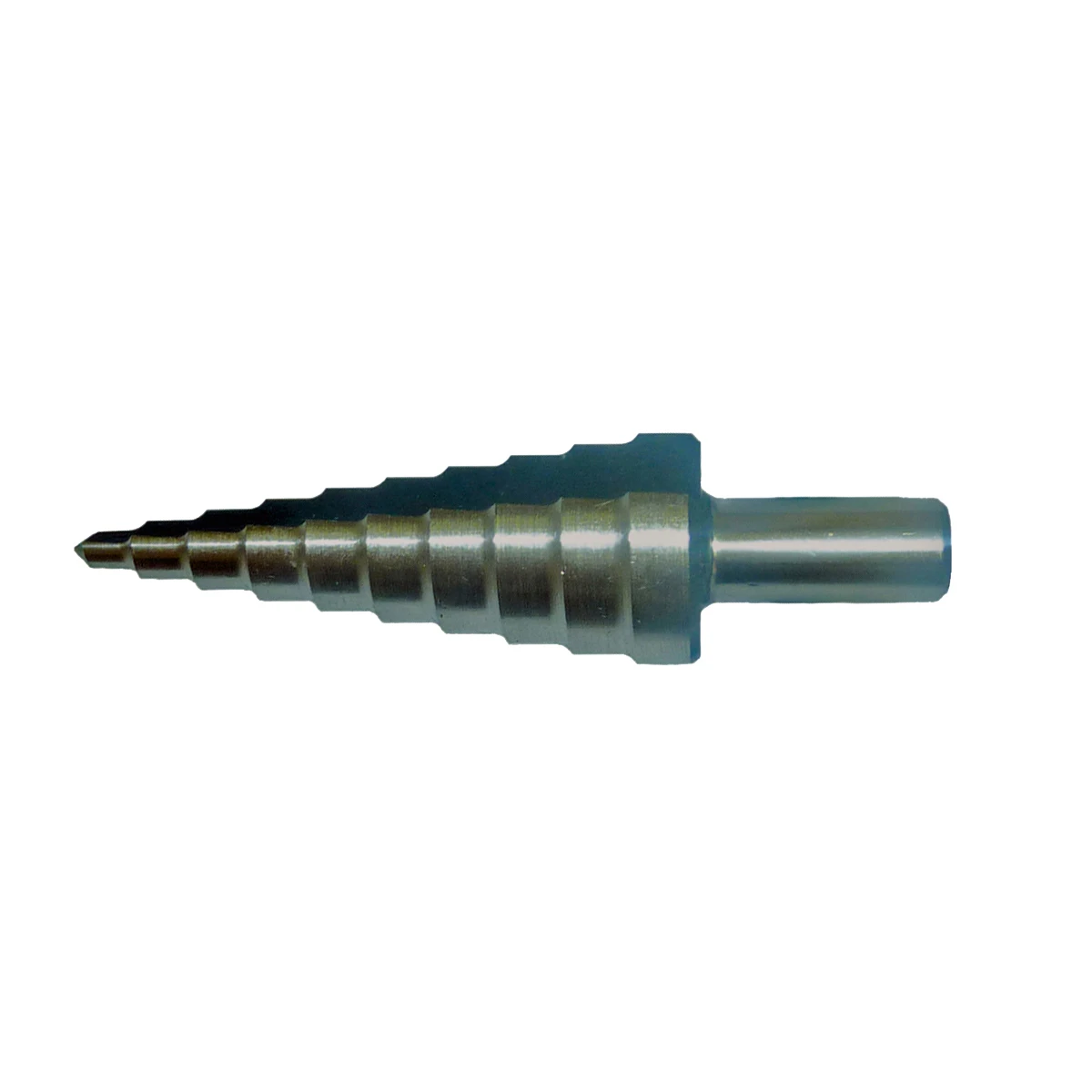

Armeg Drill Bit Step 4-22mm
Armeg Drill Bit Step 4-22mm
Armeg Drill Bit Step 4-22mm - Image 2
Armeg Drill Bit Step 4-22mm - Image 3
Armeg Drill Bit Step 4-22mm - Image 4

Armeg Drill Bit Step 4-22mm

£60.73 Incl. VAT

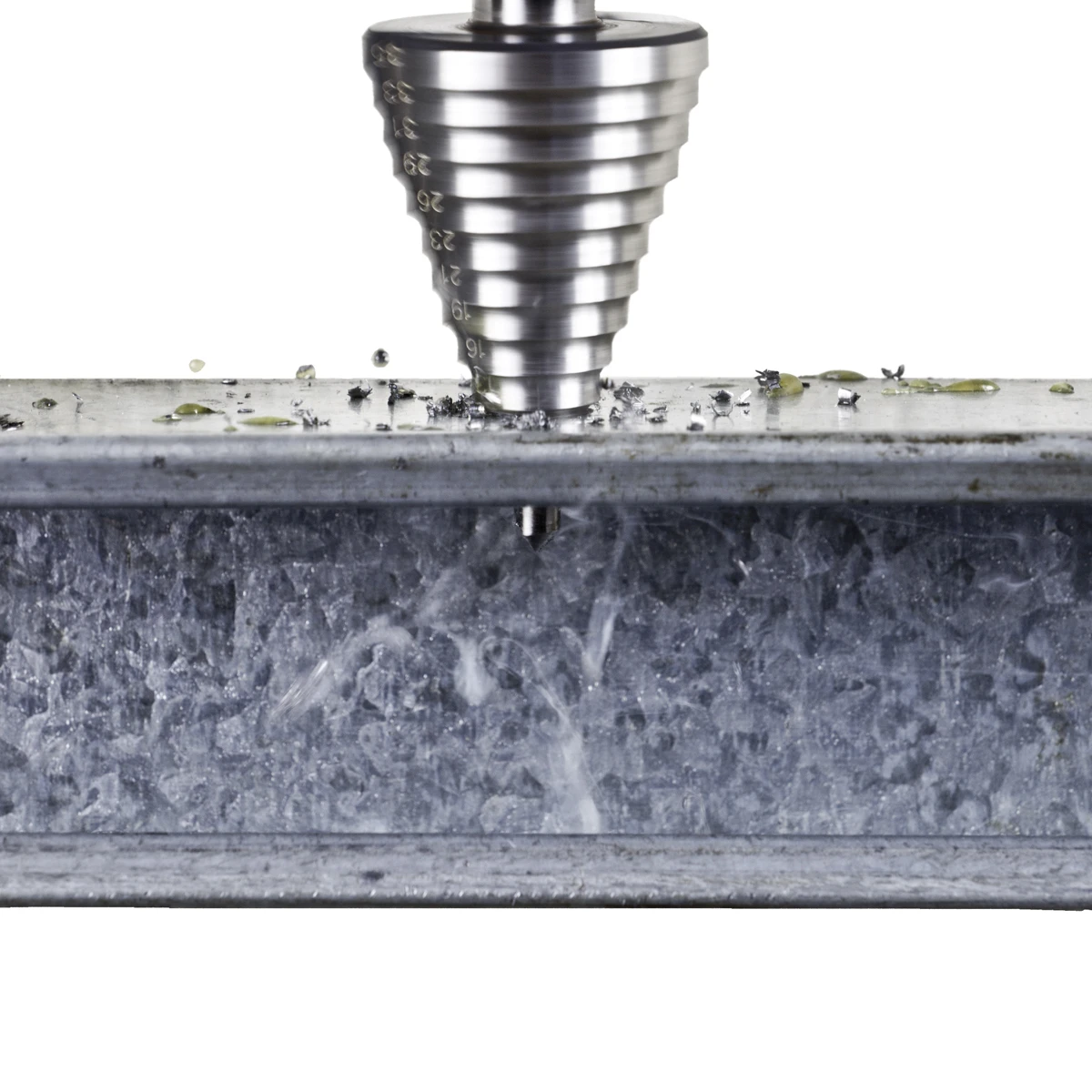

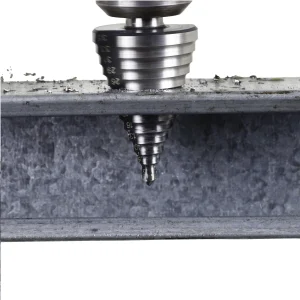

Armeg Pro-Step Drill is perfect for consistently accurate holes in trunking and sheet steel. Pro-Step is ideal for holes of up to 35mm in metal enclosures, trunking, cabinets, cladding, switch-gear etc., easily opening up existing holes, jobs which require specific tools with diameters suitable for ISO threads and clearance holes, applications where many different diameters are required which are available on one tool . · · · Up to 10 drill diameter steps · · Laser etched diameter markings · · Fully ground body profile · · Precision ground, tapered cutting edges allow material up to 6mm to be drilled · · Pro-Step can be used in sheet steel, Non-ferrous metals, plastics, formica, plywood

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EMWSD04-22 Categories: , , Brand: Product Code: 2500407390

Description

Technical Specifications  Technical Specifications Step drill Unit of measurement mm Max. plate thickness 5 mm Number of drill steps 10 Min. drill diameter 4 mm Number of cutting edges 1 Max. drill diameter 22 mm Spiral groove No With edge breaker Yes Exchangeable centring tip No Hard metal version Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
