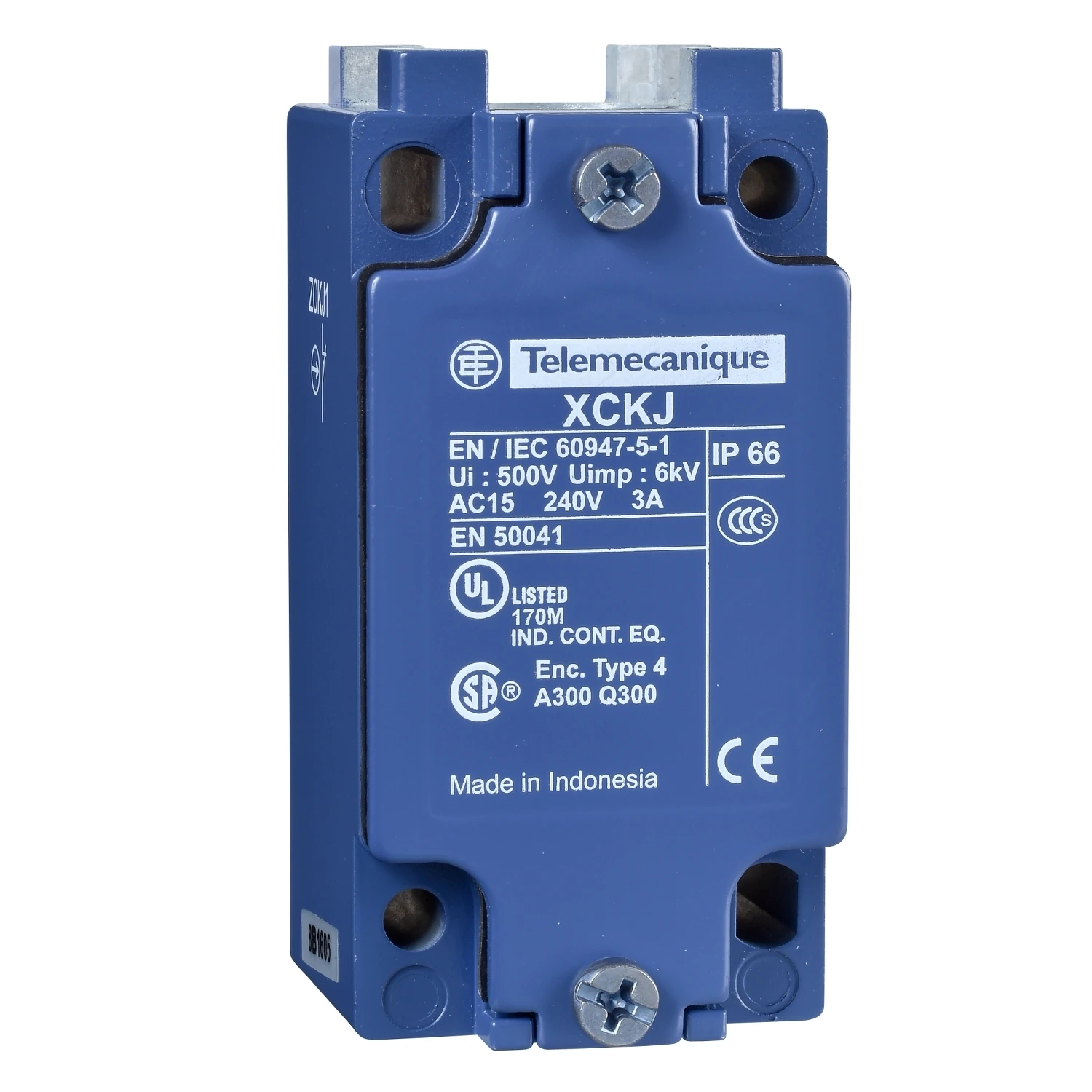

Telemecanique Sensors Assembly Body Fixed 1 Normally Open 1 Normally Closed For Limit Switch
Telemecanique Sensors Assembly Body Fixed 1 Normally Open 1 Normally Closed For Limit Switch
Telemecanique Sensors Assembly Body Fixed 1 Normally Open 1 Normally Closed For Limit Switch - Image 2
Telemecanique Sensors Assembly Body Fixed 1 Normally Open 1 Normally Closed For Limit Switch - Image 3
Telemecanique Sensors Assembly Body Fixed 1 Normally Open 1 Normally Closed For Limit Switch - Image 4

Telemecanique Sensors Assembly Body Fixed 1 Normally Open 1 Normally Closed For Limit Switch

£38.06 Incl. VAT

This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and a M20 cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges. · · · This ZCK body/contact assembly with connector has a fixed body and a Zamak body. · · It has 1 x NO + 1 x NC snap action contacts and a M20 cable entry. · · It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges. · · Electrical durability: 5000000 cycles · · Conventional enclosed thermal current: 10 A · · Operational current rate: 3A at 240V · · Positive opening · · Without local display · · Ambient temperature (high): 10 to 120°C · · IP66/IK07 Degree of protection

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZCKJ1H29 Categories: , , , Brand: Product Code: 2500024095

Description

Technical Specifications  Technical Specifications End switch Interface type None Explosion safety category for dust None Explosion safety category for gas None Type of control element None Switching function Quick-break switch Type of interface for safety communication None Construction type housing Cuboid Housing material Metal Type of electric connection Cable entry metrical Degree of protection (IP rating) IP65 Number of safety auxiliary contacts 0 Number of contacts as normally open contact 1 Rated operation current Ie at DC-13, 24 V 0 A Rated operation current Ie at DC-13, 125 V 0 A Number of contacts as change-over contact 0 Number of contacts as normally closed contact 1 Rated operation current Ie at AC-15, 230 V 3 A Diameter sensor 0 mm Rated operation current Ie at DC-13, 230 V 0.27 A Rated operation current Ie at AC-15, 24 V 0 A Rated operation current Ie at AC-15, 125 V 0 A Length of sensor 44 mm Height of sensor 77 mm Width sensor 40 mm Ambient temperature during operating -25 – 70 °C Switching function latching No Output electronic No Forced opening Yes With status indication No Suitable for safety functions No · Technical Data Sheet – Click to Download
