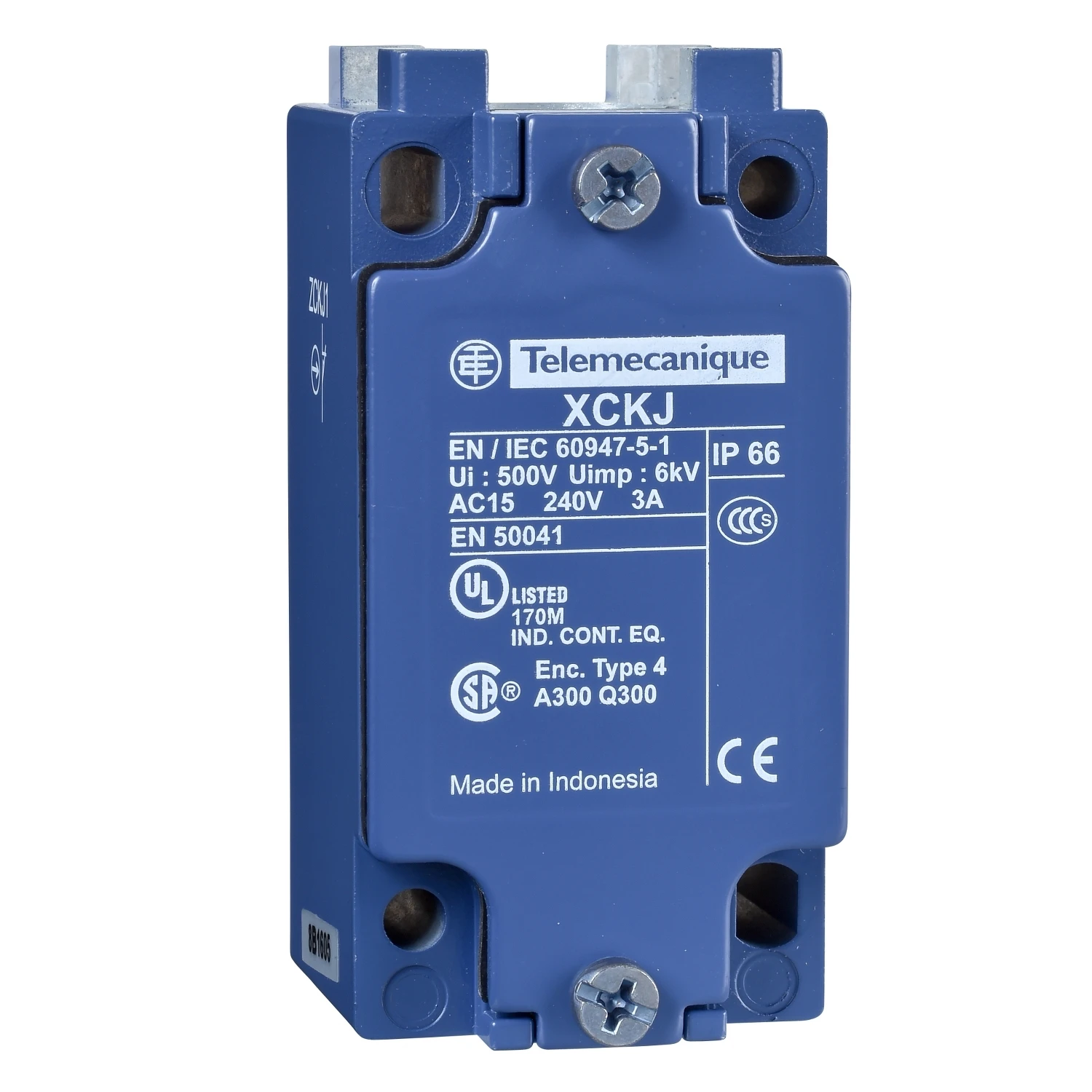

Assembly Body Fixed For Limit Switch 2Co Dp
Assembly Body Fixed For Limit Switch 2Co Dp
Assembly Body Fixed For Limit Switch 2Co Dp - Image 2
Assembly Body Fixed For Limit Switch 2Co Dp - Image 3
Assembly Body Fixed For Limit Switch 2Co Dp - Image 4

Assembly Body Fixed For Limit Switch 2Co Dp

£76.91 Incl. VAT

This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 2 x co snap action (simultaneous) contacts and a M20 cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges. · · · This ZCK body/contact assembly with connector has a fixed body and a Zamak body. · · It has 2 x co snap action (simultaneous) contacts and a M20 cable entry. · · It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges. · · Electrical durability: 5000000 cycles · · Conventional enclosed thermal current: 10 A · · Operational current rate: 3A at 240V · · No positive opening · · Without local display · · Ambient temperature(low): -40 to 70°C · · IP66/IK07 Degree of protection

3 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZCKJ2H29 Categories: , , Brand: Part Number: 2500024097

Description

Technical Specifications  Technical Specifications End switch Type of interface for safety communication None Type of control element None Interface type None Explosion safety category for gas None Explosion safety category for dust None Switching function Quick-break switch Construction type housing Cuboid Housing material Metal Type of electric connection Cable entry metrical Degree of protection (IP rating) IP65 Number of contacts as normally open contact 0 Rated operation current Ie at DC-13, 125 V 0 A Length of sensor 44 mm Rated operation current Ie at AC-15, 230 V 3 A Rated operation current Ie at DC-13, 24 V 0 A Rated operation current Ie at AC-15, 125 V 0 A Rated operation current Ie at AC-15, 24 V 0 A Number of contacts as normally closed contact 0 Number of contacts as change-over contact 2 Number of safety auxiliary contacts 0 Rated operation current Ie at DC-13, 230 V 0.27 A Diameter sensor 0 mm Height of sensor 77 mm Width sensor 40 mm Ambient temperature during operating -25 – 70 °C With status indication No Suitable for safety functions No Switching function latching No Output electronic No Forced opening No · Technical Data Sheet – Click to Download
