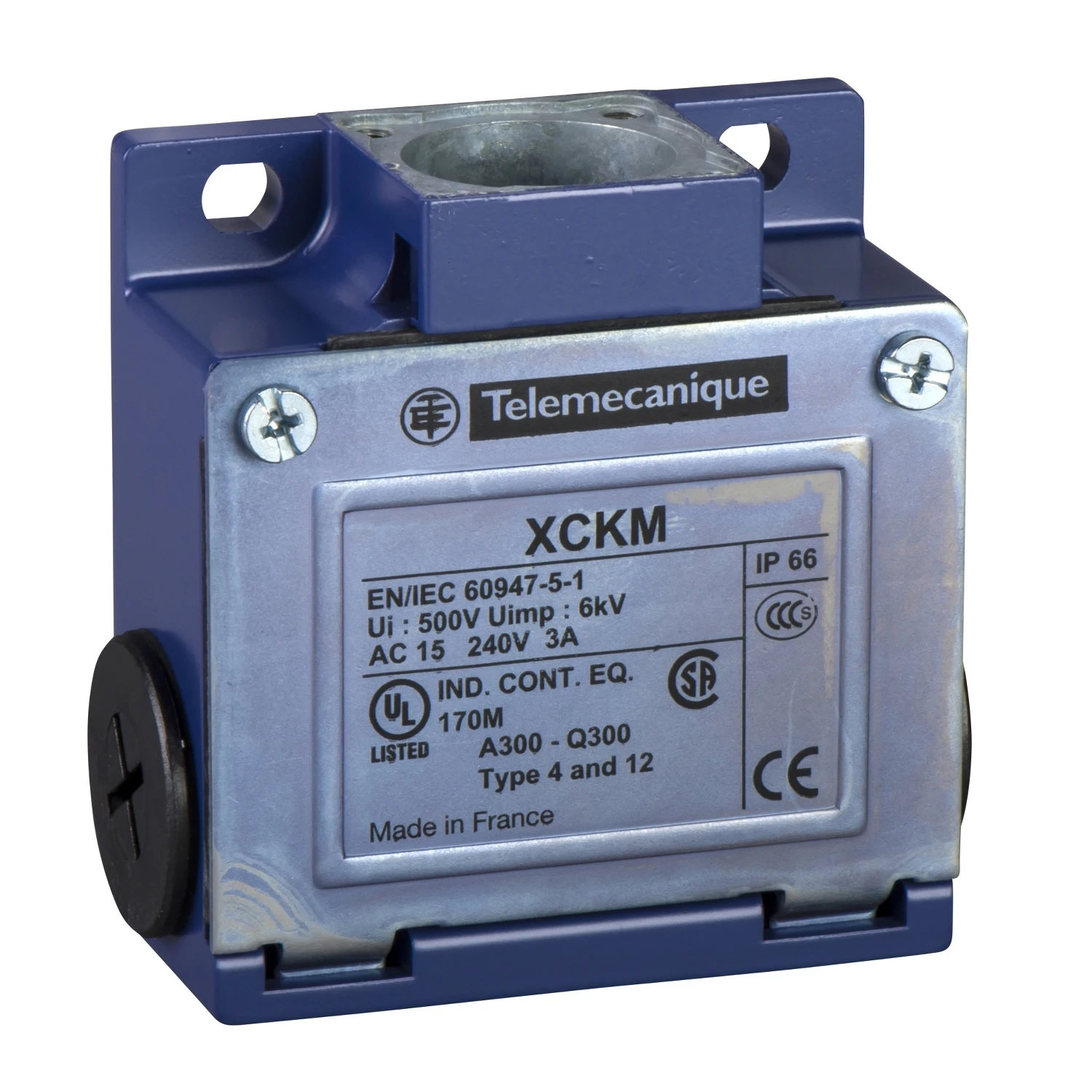

Telemecanique Sensors Assembly Body For Limit Switch 1Co Single Pole Metal
Telemecanique Sensors Assembly Body For Limit Switch 1Co Single Pole Metal
Telemecanique Sensors Assembly Body For Limit Switch 1Co Single Pole Metal - Image 2
Telemecanique Sensors Assembly Body For Limit Switch 1Co Single Pole Metal - Image 3
Telemecanique Sensors Assembly Body For Limit Switch 1Co Single Pole Metal - Image 4

Telemecanique Sensors Assembly Body For Limit Switch 1Co Single Pole Metal

£29.75 Incl. VAT

This ZCK body/contact assembly with connector has a Zamak body. It has 1 x NO + 1 x NC snap action contacts and multiple M20 cable entries. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges. · · · This ZCK body/contact assembly with connector has a Zamak body. · · It has 1 x NO + 1 x NC snap action contacts and multiple M20 cable entries. · · It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges. · · Electrical durability: 5000000 cycles · · Conventional enclosed thermal current: 10 A · · Operational current rate: 3A at 240V · · Positive opening · · 10 A short circuit protection · · Ambient temperature: -25 to 70°C · · IP65/IK05 Degree of protection

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZCKM1H29 Categories: , , Brand: Product Code: 2500024136

Description

Technical Specifications  Technical Specifications End switch Type of interface for safety communication None Type of control element None Interface type None Explosion safety category for dust None Explosion safety category for gas None Switching function Quick-break switch Construction type housing Cuboid Type of electric connection Cable entry metrical Housing material Metal Degree of protection (IP rating) IP65 Number of contacts as normally closed contact 1 Rated operation current Ie at AC-15, 24 V – A Height of sensor 64 mm Rated operation current Ie at AC-15, 125 V – A Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V – A Rated operation current Ie at AC-15, 230 V 3 A Rated operation current Ie at DC-13, 230 V 0.27 A Diameter sensor – mm Width sensor 64 mm Length of sensor 30 mm Number of safety auxiliary contacts 0 Number of contacts as change-over contact 0 Number of contacts as normally open contact 1 Ambient temperature during operating -25 – 70 °C Suitable for safety functions No With status indication No Switching function latching No Output electronic No Forced opening Yes · Technical Data Sheet – Click to Download
