Autocharge EV Charging Pedestal 3 Phase Grey 2 x Type 2 (IEC 62196) Charging Sockets Up To 22kW (32A) Per Socket 1 x 63A 400V AC

Autocharge EV Charging Pedestal 3 Phase Grey 2 x Type 2 (IEC 62196) Charging Sockets Up To 22kW (32A) Per Socket 1 x 63A 400V AC

£2,962.82 Incl. VAT

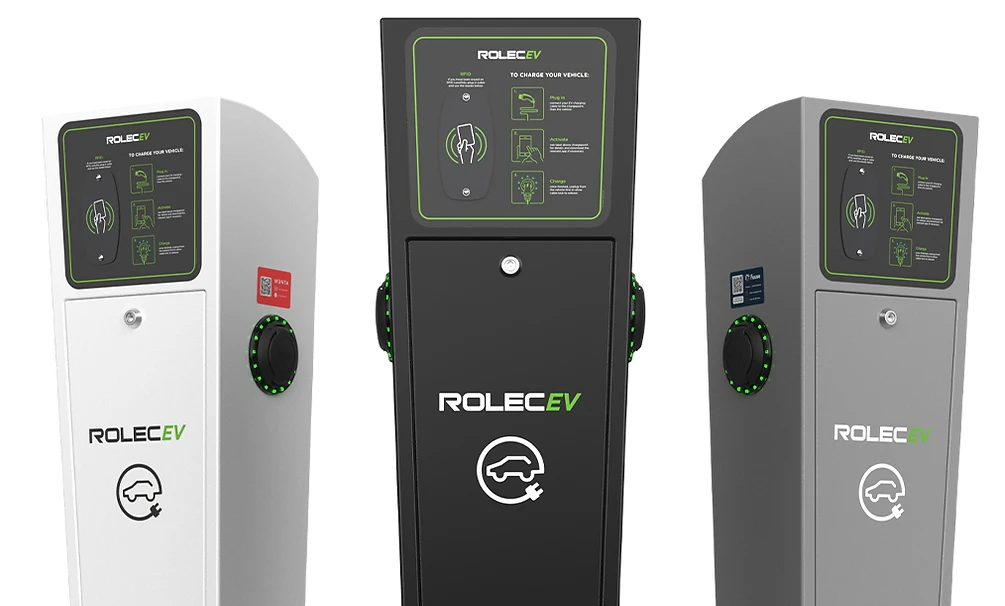

The AUTOCHARGE is a robust and hard-wearing EV charging pedestal. Its heavy-duty and vandal-resistant features, make it the ideal solution for exposed locations such as workplaces and public car parks.This future-proof OCPP compliant pedestal can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back-office management system. · · · Plug & charge, mobile app or RFID controlled charging · · TruePEN PME fault detection (no earth rod required) · · Supports dynamic load balancing & static load management · · OCPP 1.6 compliant (Can integrate with any back-office)

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ROLEC0023G Categories: , Brand:

Description

Technical Specifications  Technical Specifications Charging device for electric vehicles Voltage type of supply voltage AC Degree of protection (IP rating) IP54 Frequency 50/60 Hz Installation side connection model 3-phase Impact resistance (IK rating) IK10 Open Charge Point Protocol (OCPP) version 1.6 Max. power per charging point 22 kW Networkable via Wi-Fi Yes Suitable for wall mounting No Depth 268 mm Max. output current DC 32 A Number of socket outlets Type 2 2 Height 1275 mm Width 332 mm Networkable via LAN Yes Radio standard 4G Yes Floor mounting Yes · Technical Data Sheet – Click to Download
